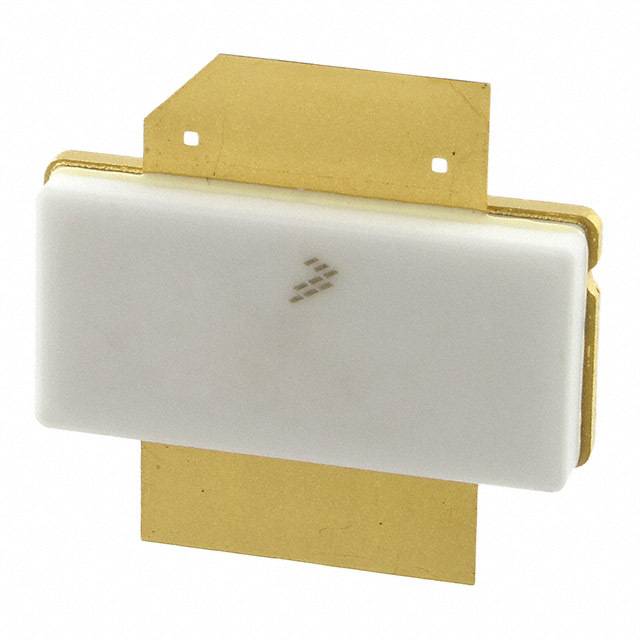

AFT21S220W02GSR3

射频金属氧化物半导体场效应RF MOSFET晶体管 2110-2170 MHz 50 W Avg. 28 V

Overview

The AFT21S220W02SR3 and 50 W RF power LDMOS transistors are designed for cellular base station applications requiring very wide instantaneous bandwidth capability covering the frequency range of 2110 to 2170 MHz.

MoreLess

## Features

* Designed for Wide Instantaneous Bandwidth Applications

* Greater Negative Gate-Source Voltage Range for Improved Class C Operation

* Able to Withstand Extremely High Output VSWR and Broadband Operating Conditions

* Optimized for Doherty Applications

* RoHS Compliant

* In Tape and Reel. R3 Suffix = 250 Units, 56 mm Tape Width, 13-inch Reel.

## Features RF Performance Table

### 2100 MHz

Typical Single-Carrier W-CDMA Performance: VDD = 28 Vdc, IDQ = 1200 mA, Pout = 50 W Avg., Input Signal PAR = 9.9 dB @ 0.01% Probability on CCDF.
.
*Frequency** | **Gps
dB
.
* | **ηD
%
.
* | **Output PAR
dB
.
* | **ACPR
dBc
.
* | **IRL
dB
.
*

\---|---|---|---|---|---

2110 MHz| 18.9| 29.8| 7.2| –34.0| –18

2140 MHz| 19.1| 29.3| 7.1| –34.0| –25

2170 MHz| 19.2| 28.9| 7.0| –34.0| –17
