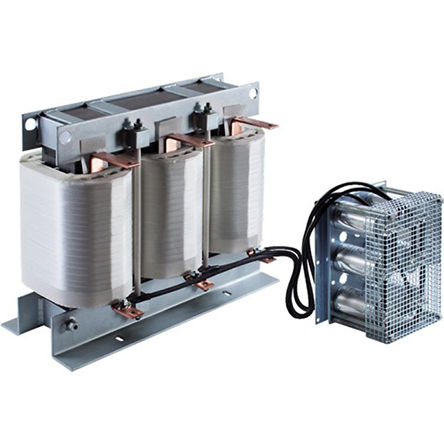

FN5045-260-99

Power Line Filter 3kHz 260A 500VAC Terminal Block Screw Mount

* Smooth sine wave without voltage peaks

* Perfect motor protection

* Reduce bearing currents

* Motor frequency up to 200 Hz

* Extended motor cable length capability

**Features:**

* Converts the rectangular PWM output voltage of motor drives into a smooth sine wave with low residual ripple

* Elimination of premature motor damage caused by high dv/dt, overvoltages, cable ringing, motor overheating, and eddy current losses

* Improves bearing life time because of bearing currents caused by circulating currents

* Complies with IEC 60034-17* and NEMAMG1 requirements for general-purpose motors

* Optional with NEMA 1 protective cover

**Applications:**

* HVAC applications

* Pumps

* Ventilators

* Conveyors

* Compressors

* Elevators

* Cranes

* Medium voltage applications, deployed in front of the step-up transformer

* Retrofit installations with motor drives

* Motor drive with long motor cable

* Motor drive with multiple motors in parallel
