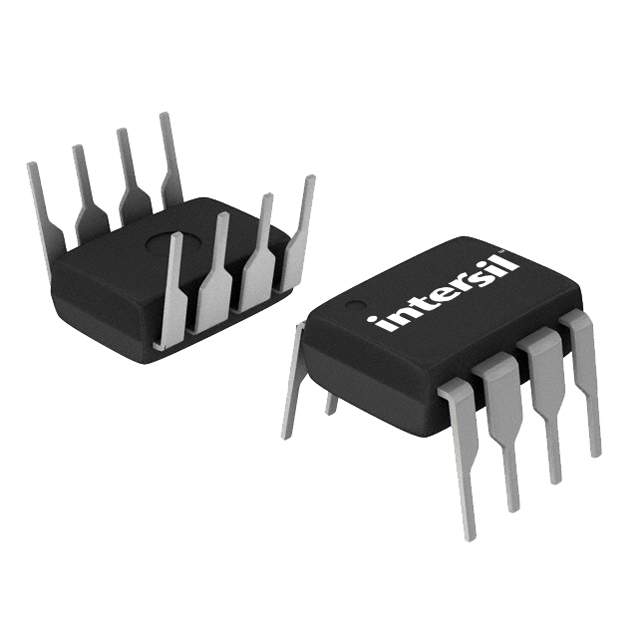

EL7154CN

高速，单片引脚驱动器 High Speed, Monolithic Pin Driver

The EL7154 three-state pin driver is particularly well suited for ATE and level shifting applications. The 4A peak drive capability, makes the EL7154 an excellent choice when driving high speed capacitive lines.

Features

• Comparatively low cost

• Three-State output

• 3V and 5V Input compatible

• Clocking speeds up to 10MHz

• 20ns Switching/delay time

• 4A Peak drive

• Isolated drains

• Low output impedance: 2.5Ω

• Low quiescent current: 5mA

• Wide operating voltage: 4.5V to16V

• Isolated P-Channel device

• Separate ground and VLpins

• Pb-free plus anneal available RoHS compliant

Applications

• Loaded circuit board testers

• Digital testers

• Level shifting below GND

• IGBT drivers

• CCD drivers
