IPBT-102-H1-T-D-RA

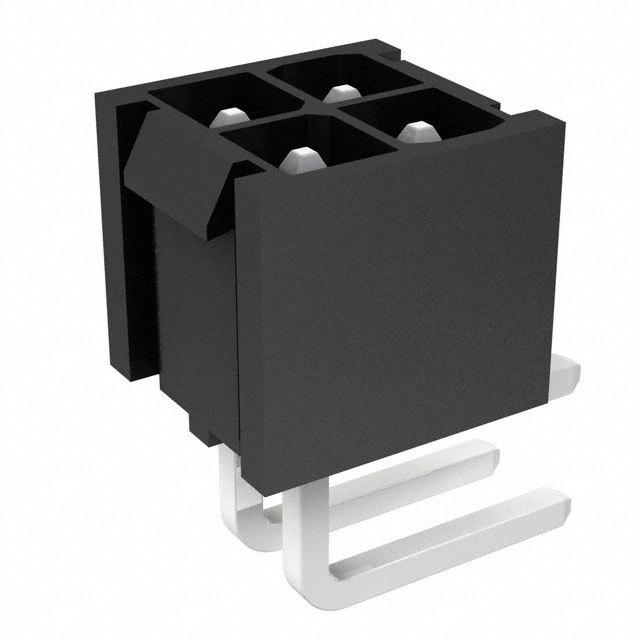

SAMTEC IPBT-102-H1-T-D-RA Wire-To-Board Connector, 4.19mm, 4Contacts, Header, IPBT Series, Through Hole, 2Rows

针座 通孔，直角 4 位置 0.165"（4.20mm）

得捷:
CONN HEADER R/A 4POS 4.2MM

艾睿:
There won&s;t be any energy loss when you power up your circuit using the power mate terminal strip IPBT-102-H1-T-D-RA power connector from Samtec. This HDR connector&s;s 4 contacts that are made out of copper alloy and plated with tin over nickel. Its pitch is 4.19 mm. This connector has a single port. It has a maximum voltage rating of 707VDC|500 VAC. It has a right angle body orientation. It has a header type gender. IPBT-102-H1-T-D-RA is housed in liquid crystal polymer. This device has a maximum current rating of 5.9 A/contact. In order to ensure parts aren&s;t damaged by bulk packaging, this product comes in tube packaging to add a little more protection by storing the loose parts in an outer tube. This power connector has a minimum operating temperature of -55 °C and a maximum of 105 °C. This product is 9.71 mm long, 10.77 mm tall and 17.32 mm deep. Its 4 terminals use the solder termination method.

安富利:
Conn Power Mate Terminal Strip HDR 4 POS 4.19mm Solder RA Thru-Hole 4 Terminal 1 Port Tube

Newark:
# SAMTEC  IPBT-102-H1-T-D-RA  Wire-To-Board Connector, 4.19 mm, 4 Contacts, Header, IPBT Series, Through Hole, 2 Rows
