SACC-E-MS-5CON-M16/0,5 SCO

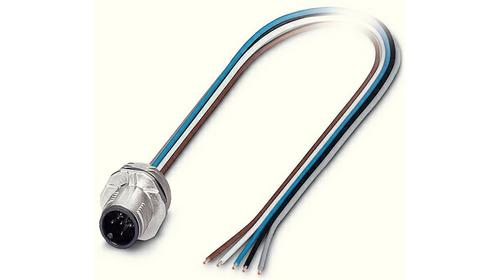

PHOENIX CONTACT SACC-E-MS-5CON-M16/0,5 SCO Sensor Connector, Sensors and Actuators

The is a 5-position A-coded M12 sensor/actuator Flush-type Plug with individual wires connection. It has CuZn contacts and PA 66 polyamide 66 contact carrier. Standard pin assignments and coding for signal, data and power transmission with uniform design-in design.

.

Front/screw mounting with M16 thread

.

Nickel-plated zinc die-cast knurls

.

Pre-assembled with TPE litz wires for immediate use

.

Sealed on the litz wire side for optimum leak-tightness

.

For high transmission safety - Shield connection to the housing with optional EMC nut

.

4A Rated current at 40°C

.

60V Rated voltage

.

1.5kV Rated surge voltage

.

>=100MR Insulation resistance

.

0.34mm² Conductor cross section

.

IP67 Protection
