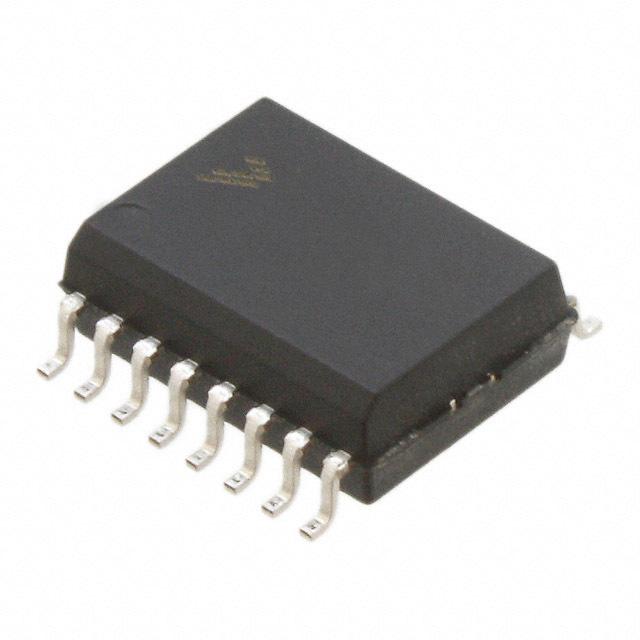

MC68HC908QY4CDW

IC MCU 8Bit 4KB FLASH 16SOIC

Introduction

The MC68HC908QY4 is a member of the low-cost, high-performance M68HC08 Family of 8-bit microcontroller units MCUs. The M68HC08 Family is a Complex Instruction Set Computer CISC with a Von Neumann architecture. All MCUs in the family use the enhanced M68HC08 central processor unit CPU08 and are available with a variety of modules, memory sizes and types, and package types.

Features

Features include:

• High-performance M68HC08 CPU core

• Fully upward-compatible object code with M68HC05 Family

• 5-V and 3-V operating voltages VDD

• 8-MHz internal bus operation at 5 V, 4-MHz at 3 V

• Trimmable internal oscillator

– 3.2 MHz internal bus operation

– 8-bit trim capability

– ± 25% untrimmed

– ± 5% trimmed

• Auto wake-up from STOP capability

• Configuration CONFIG register for MCU configuration options, including:

– Low-voltage inhibit LVI trip point

• In-system FLASH programming

• FLASH security1

• On-chip in-application programmable FLASH memory with

internal program/erase voltage generation

– MC68HC908QY4 and MC68HC908QT4 —4096 bytes

– MC68HC908QY2, MC68HC908QY1, MC68HC908QT2, and MC68HC908QT1 —1536 bytes

• 128 bytes of on-chip random-access memory RAM

• 2-channel, 16-bit timer interface module TIM

• 4-channel, 8-bit analog-to-digital converter ADC on MC68HC908QY2, MC68HC908QY4, MC68HC908QT2, and MC68HC908QT4

• 5 or 13 bidirectional input/output I/O lines and one input only:

– Six shared with keyboard interrupt function and ADC

– Two shared with timer channels

– One shared with external interrupt IRQ

– Eight extra I/O lines on 16-pin package only

– High current sink/source capability on all port pins

– Selectable pullups on all ports, selectable on an individual bit basis

– Three-state ability on all port pins

• 6-bit keyboard interrupt with wakeup feature KBI

• Low-voltage inhibit LVI module features:

– Software selectable trip point in CONFIG register

• System protection features:

– Computer operating properly COP watchdog

– Low-voltage detection with reset

– Illegal opcode detection with reset

– Illegal address detection with reset

• External asynchronous interrupt pin with internal pullup IRQ shared with general-purpose input pin

• Master asynchronous reset pin RST shared with general-purpose input/output I/O pin

• Power-on reset

• Internal pullups on IRQand RSTto reduce external components

• Memory mapped I/O registers

• Power saving stop and wait modes

• MC68HC908QY4, MC68HC908QY2, and MC68HC908QY1 are available in these packages:

– 16-pin plastic dual in-line package PDIP

– 16-pin small outline integrated circuit SOIC package

– 16-pin thin shrink small outline package TSSOP

• MC68HC908QT4, MC68HC908QT2, and MC68HC908QT1 are available in these packages:

– 8-pin PDIP

– 8-pin SOIC
