SGM9117XS/TR

SGM9117XS/TR

The SGM9117 includes triple high-speed video buffers with G = +2 in one package. Every video buffer has -3dB full signal bandwidth in excess of 200MHz, along with slew rates in excess of 300V/μs. With -65dB of crosstalk at 1MHz, the SGM9117 is useful in many high-speed applications. The differential gain and differential phase error are 0.01% and 0.02°. The SGM9117 is ideal for RGB and YPbPr signal buffering or driving. Operating from single power supply ranging from 2.5V to 5.5V and sinking an ultra-low 27.5mA quiescent current, the SGM9117 is also ideally suited for battery powered applications.

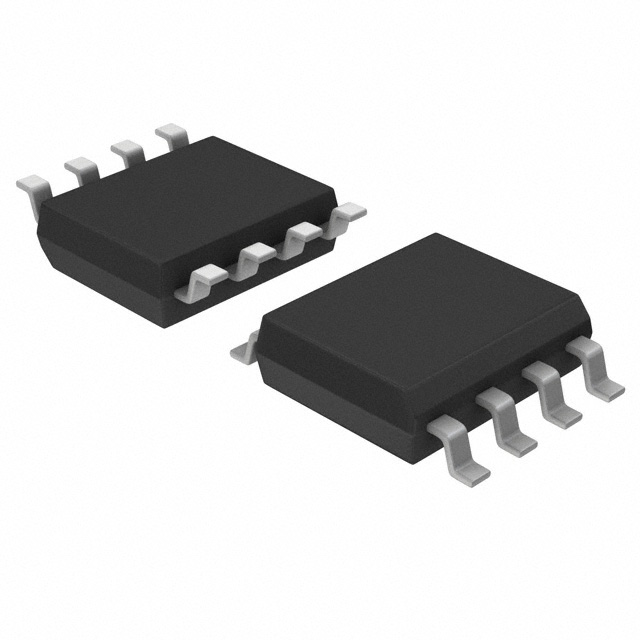

The SGM9117 is specified over the extended -40℃ to +125℃ temperature range. It is available in SOIC-8 package.

FEATURES

• Triple 200MHz Video Drivers

• Transparent Input Clamping

• 6dB Output Driver Gain and Drive Dual Video Loads

• Rail-to-Rail Output

• Input Voltage Range Includes Ground

• AC- or DC-Coupled Inputs

• AC- or DC-Coupled Outputs

• Operates from 2.5V to 5.5V Single Power Supply

• Low Power 9.2mA/Channel

    27.5mA Total Supply Current

• Available in Green SOIC-8 Package
