1.25 - 1.4mm 的安装孔 聚四氟乙烯 PTFE 绝缘镀银插座可插入直径最大为 1.7mm 的导线。 侧向扭动即可切断引脚连接 最大电流 7A，触点电阻 2mΩ ### 测试端子和短路连接

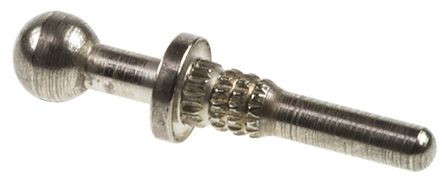

The is a SNAPLOX® Printed Circuit Test Point for towed sonar arrays and rolling stock electronics equipment. The Snaplox® concept enables highly accurate testing to be done whilst reducing the risk of board damage. This is due to the unique ball and socket arrangement which provides 8 points of low resistance contact through a 60° connection angle. Beyond this 60° the socket disconnects with ease preventing stress to the pin and board. The standard finishes are palladium or Gold plated pin and PTFE insulated silver-plated socket to give a robust, long life, low contact resistance test point system. They are available with a range of PCB surface mount, Kinky pin and Snale and chassis mounting Barb Cone-Lock retention mechanisms to suit most applications and bespoke styles can be manufactured as needed due to our in-house, high precision machining capabilities.

.

Award winning kinematic design allows rapid connection/disconnection

.

High retention force with socket at <30° & 8-point contact ensures low contact resistance

.

Low detachment force with socket at >30° reduces risk of inadvertent damage to PCB during test

.

Surface mount, self retaining and straight shank designs are available

.

Hand or semi-automatic machine assembly

.

Ø1.25mm 0.049" to 1.40mm 0.055" Mounting Hole

.

1.4mm 0.055" Minimum PCB thickness

.

2.4mm 0.094" Shoulder diameter

.

AT 1/09 Assembly tool
