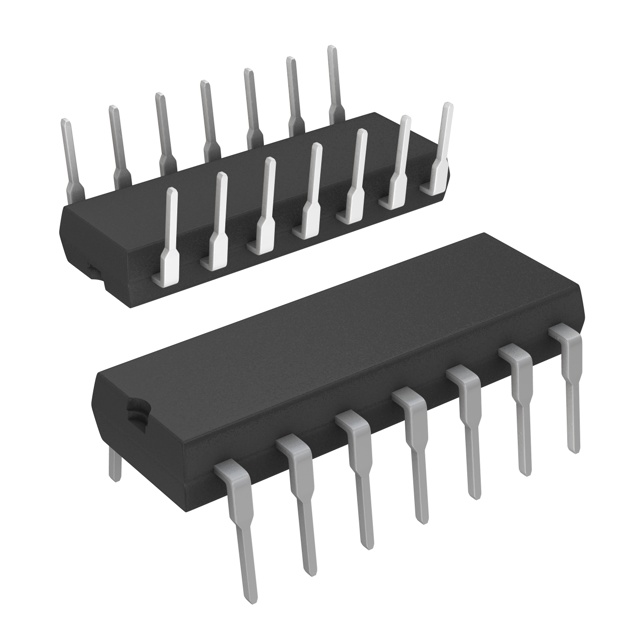

74C14

六角施密特触发器 Hex Schmitt Trigger

General Description

The MM Hex Schmitt Trigger is a monolithic comple mentary MOS CMOS integrated circuit constructed with N- and P-channel enhancement transistors. The positive and negative going threshold voltages VT+ and VT−, show low variation with respect to temperature typ. 0.0005V/°C at VCC = 10V, and hysteresis, VT+ − VT− ≥ 0.2 VCC is guaranteed.

All inputs are protected from damage due to static discharge by diode clamps to VCC and GND.

Features

■ Wide supply voltage range: 3.0V to 15V

■ High noise immunity: 0.70 VCC typ.

■ Low power: TTL compatibility: 0.4 VCC typ. 0.2 VCC guaranteed

■ Hysteresis: 0.4 VCC typ.: 0.2 VCC guaranteed
