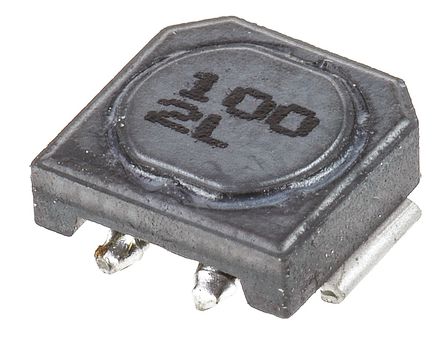

ELL6RH100M

PANASONIC ELECTRONIC COMPONENTS  ELL6RH100M  表面贴装功率电感器, ELL-6RH系列, 10 µH, ± 20%, 屏蔽, 0.095 ohm, 1.1 A

Q值Q Value| \---|--- 值Inductance| 10uH 误差Tolerance| ± 20% 额定电流Current Rating| 1100mA 饱和电流Current - Saturation| DC电阻DCRDC Resistance DCR| 0.095Ω/Ohm Description & Applications| ■ Features ● Thin height 2.5 mm, 3.0 mm ● Higher reliability in mounting by separating the user terminal and internal connection. ● Large current capability ● RoHS compliant ■ Recommended Applications ● Video, Audio, Mobile communications, Electric battery driven equipment ● As a decoupling choke coil in DC-DC converte rs ■ Features ● Thin height 2.5 mm, 3.0 mm ● Higher reliability in mounting by separating the user terminal and internal connection. ● Large current capability ● RoHS compliant ■ Cautionary Notes Regarding Usage in DC-DC converters ● Maximum Dissipation of 1 W. ● Maximum case temperature of 105 °C Ambient & self-heating temperature 描述与应用| ■特点 ●薄（高度2.5毫米，3.0mm厚） ●更高的可靠性，通过分离用户终端的安装 和内部连接。 ●大电流能力 ●符合RoHS标准 ■推荐应用 ●视频，音频，移动通信，电气 电池驱动的设备 ●去耦扼流线圈在DC-DC转换器具RS中 ■特点 ●薄（高度2.5毫米，3.0mm厚） ●更高的可靠性，通过分离用户终端的安装 和内部连接。 ●大电流能力 ●符合RoHS标准 ■关于使用DC-DC转换器的注意事项 ●最大功耗为1 W ●最大外壳温度为105°C （环境和自动加热温度）
