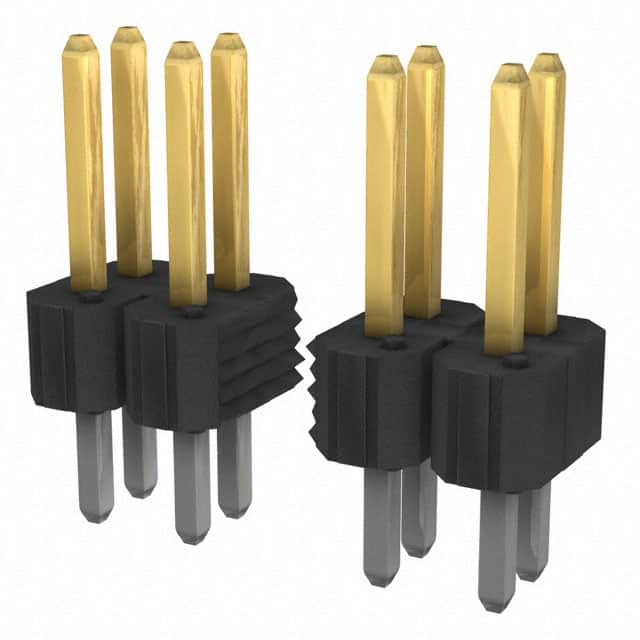

67997-216HLF

Safety is an important concern when designing electronic devices. FCI&s;s unshrouded 67997-216HLF header connector helps protect your equipment from accidental shortages. This HDR connector&s;s 16 contacts that are made out of phosphor bronze and plated with gold over nickel|gxt over nickel. It has a header type gender. This is a 2-row connector. Its pitch is 2.54 mm. It has a straight body orientation. It has a maximum voltage rating of 1500 VAC. This device has a maximum current rating of 3 A/contact. This product comes packaged in bulk, so the parts will be stored loosely. It uses the solder termination method. This product is 20.32 mm long, 8.38 mm tall and 4.83 mm deep. This connector has an operating temperature of -65 to 125 °C. 67997-216HLF is housed in black nylon|polychlorinated terphenyl|liquid crystal polymer.

Connector Header Through Hole 16 position 0.100" 2.54mm

得捷:
CONN HEADER VERT 16POS 2.54MM

艾睿:
BergStik®, Board to Board connector, Unshrouded vertical header, Through Hole, Double Row, 16 Positions, 2.54 mm 0.100in Pitch
