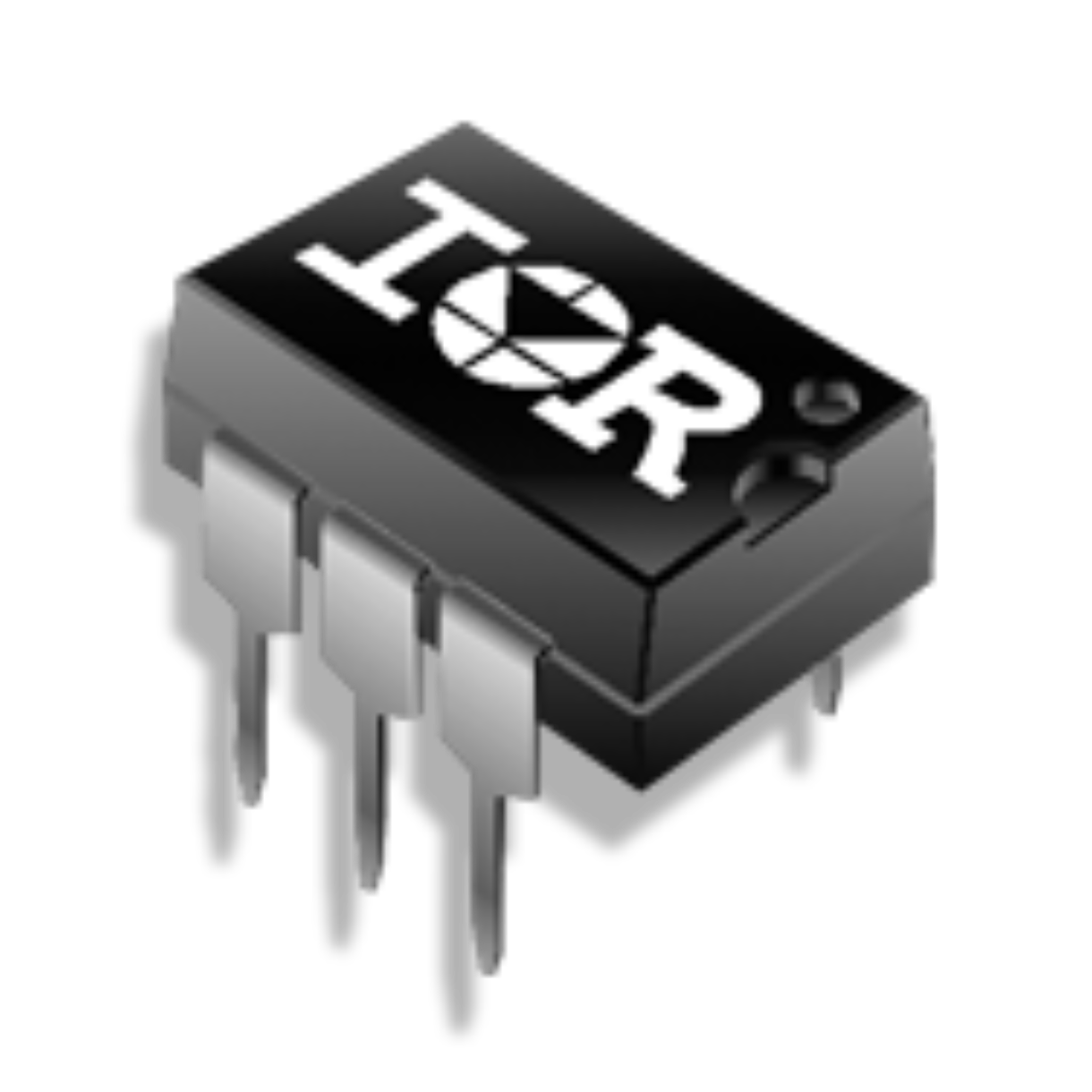

PVG612

Relay SSR 25mA DC-IN 1A 60V AC-DC-OUT 6Pin PDIP Tube

Single Pole, Normally Open, 0-60V, 1.0A AC/ 2.0 A DC

General Description

The Series Photovoltaic Relay is a single pole, normally open solid-state relay that can replace electromechanical relays in many applications. It utilizes ’s proprietary HEXFET power MOSFET as the output switch, driven by an integrated circuit photovoltaic gen erator of novel construction. The output switch is controlled by radiation from a GaAlAs light emitting diode LED which is optically isolated from the photovoltaic generator.

PVG612 Features

■ HEXFET Power MOSFET output

■ Bounce-free operation

■ High load current capacity

■ High off-state resistance

■ Linear AC/DC operation

■ 4,000 VRMS I/O isolation

■ Solid-State reliability

■ UL recognized and CSA certified

Applications

■ Programmable Logic Controllers

■ Computers and Peripheral Devices

■ Audio Equipment

■ Power Supplies and Power Distribution

■ Control of Displays and Indicators

■ Industrial Automation
