ACPL-W454-000E

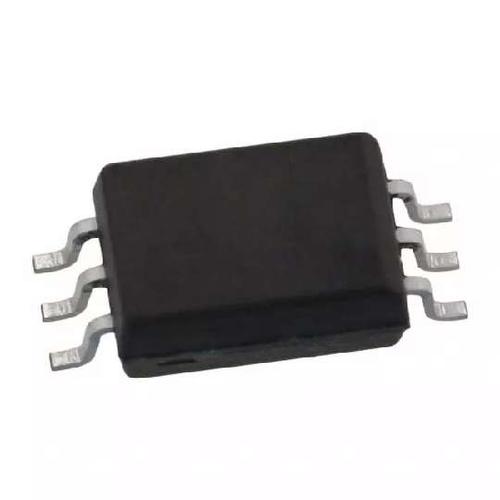

Optocoupler; SMD; Channels:1; Out: transistor; 5kV; SO6; 30kV/μs

Description

The ACPL-W454/P454 is similar to Avago Technologies other high speed transistor output optocouplers, but with shorter propagation delays and higher CTR. The ACPL W454/P454 also has a guaranteed propagation delay difference tPLH - tPHL. These features make the ACPL W454/P454 an excellent solution to IPM inverter dead time and other switching problems.

Features

• Package Clearance/Creepage at 8mm ACPL-W454

• Function Compatible with HCPL-4504

• Surface Mountable in 6-pin stretched SO6

• Short Propagation Delays for TTL and IPM Applications

• Very High Common Mode Transient Immunity: Guaran teed 15 kV/μs at VCM = 1500 V

• High CTR: >25% at 25°C

• Guaranteed Specifications for Common IPM Applications

• TTL Compatible

• Guaranteed AC and DC Performance Over Temperature: 0°C to 70°C

• Open Collector Output

• Safety approval

     UL Recognized 3750 Vrms for 1 minute 5000 Vrms for 1 minute under ACPL-W454 devices per UL1577 CSA Approved

  IEC/EN/DIN EN 60747-5-2 Approved with VIORM = 1140 Vpeak ACPL-W454 and VIORM = 891 Vpeak ACPL-P454 for Option 060.



Applications

• Inverter Circuits and Intelligent Power Module IPM In terfacing – Shorter propagation delays and guaranteed tPLH - tPHL specifications.

• High Speed Logic Ground Isolation

   - TTL/TTL, TTL/LTTL, TTL/CMOS, TTL/LSTTL

• Line Receivers

   - High common mode transient immunity >15 kV/μs for a TTL load/drive and low input-output capacitance 0.6 pF.

• Replace Pulse Transformers

   - Save board space and weight

• Analog Signal Ground Isolation

   - Integrated photo detector provides improved linearity over phototransistors
