LB1845-E

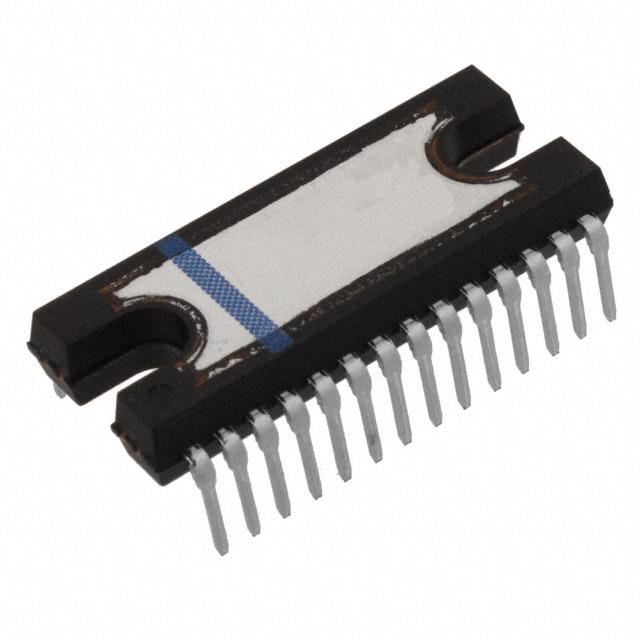

PWM Current Controlling Stepping Motor Driver, PDIP30 / DIP30SD 400 mil, 20-FNFLD

The LB1845 is a PWM current control typ stepping motor driver that uses a bipolar drive scheme. It is particularly suitable for driving carriage and paper feed stepping motors in printers and similar applications.

Features

---

.: PWM current control fixed off time scheme

.: Digital load current selection function

.: Sustained output voltage: 45V

.: Built-in thermal shutdown circuit
