RE966-01E

RE966-01E 适配器 QFP64适配电路板，用于 QFP64，节距为 0.80 mm 环氧纤维玻璃 FR4 1.50 mm 双面 35 μM 铜 电镀通孔 PTH 表面化学处理 镍/金 焊接停止掩膜 孔间距 2.54 mm 孔直径 1.10 mm，焊接垫直径 2.10 mm 底部提供外部切换选项，每个引脚带 0603 SMD 垫 电阻器或类似元件可直接安装 屏蔽垫和冷却场 ### 表面安装板

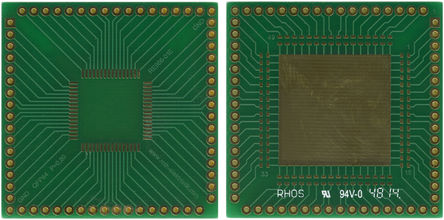

The is an IC Adapter with 2.54mm pitch spacing. It is an adaption circuit board for QFP64 with 0.80mm pitch. It has external switching options on the bottom side with 0603 SMD pads one pin each. The resistors or similar components can be mounted directly.

.

Double-sided 35µm copper Cu

.

Plated through holes PTH

.

Ni/Au surface chemical

.

Solder stop mask

.

1.50mm Epoxy fibre-glass
