FMY5

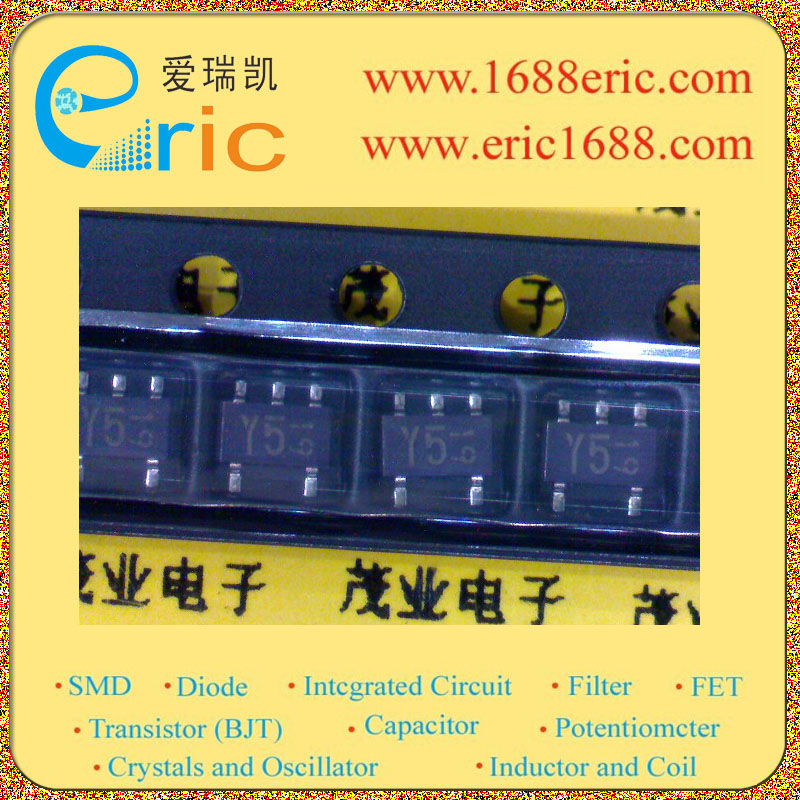

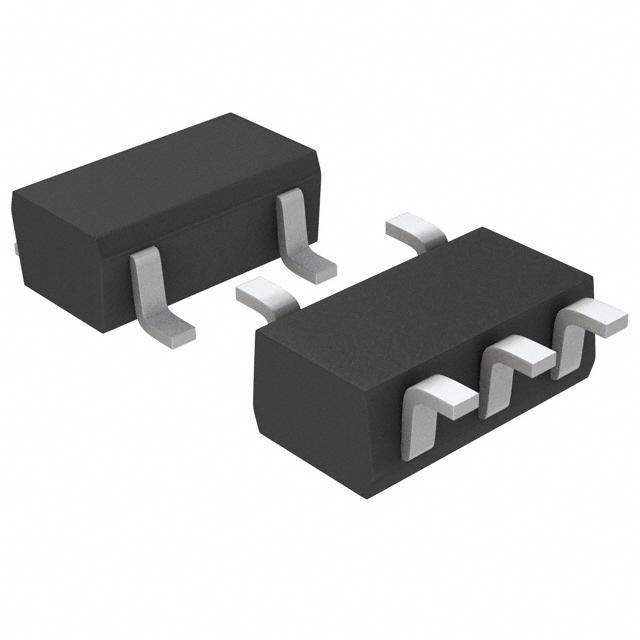

FMY5 PNP+NPN复合三极管 -120V/120V -50mA/50mA 180~820 SOT-153/SMT5/SC-74A 标记Y5 用于开关/数字电路

集电极-基极反向击穿电压VBRCBO Collector-Base VoltageVCBO| -120V/120V \---|--- 集电极-发射极反向击穿电压VBRCEO Collector-Emitter VoltageVCEO| -120V/120V 集电极连续输出电流IC Collector CurrentIC| -50mA/50mA 截止频率fT Transtion FrequencyfT| 140MHz 直流电流增益hFE DC Current GainhFE| 180~820 管压降VCE（sat） Collector-Emitter Saturation Voltage| 500mV 耗散功率Pc Power Dissipation| 300mW Description & Applications| Features •General purposedual transistors •Both the 2SA1514K and 2SC3906K chips in an SMT package. •PNP and NPN chips are connecter in a common emitter. 描述与应用| 特点 •通用（双晶体管） •两个的2SA1514K2SC3906K芯片在SMT封装。 •PNP和NPN芯片是在一个共同的发射极连接器
