1757336

Phoenix Contact CLASSIC COMBICON MSTBA 5.08mm 端子块管座CLASSIC COMBICON MSTBA 5.08mm 节距单层有罩端子块管座，用于 320 V III/2 系统。 这些 CLASSIC COMBICON MSTBA 5.08mm 节距端子块管座为通孔直角管座印刷电路板安装。 前缀为 **1809** 的部件号具有锁定和释放功能 有关编码部分，请参见库存号 648-6882 有关标记卡，请参见库存号 804-0961、437-3598 和 437-3605 ### Phoenix Contact COMBICON 5.08mm 两件式端子块

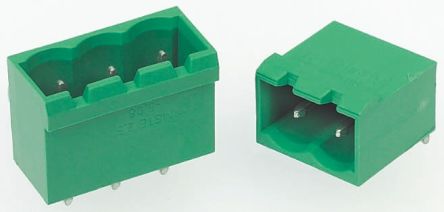

Contact CLASSIC COMBICON MSTBA 5.08mm 端子块管座

CLASSIC COMBICON MSTBA 5.08mm 节距单层有罩端子块管座，用于 320 V III/2 系统。 这些 CLASSIC COMBICON MSTBA 5.08mm 节距端子块管座为通孔直角管座印刷电路板安装。

前缀为

.

*1809** 的部件号具有锁定和释放功能

有关编码部分，请参见库存号 648-6882

有关标记卡，请参见库存号 804-0961、437-3598 和 437-3605

得捷:
TERM BLOCK HDR 11POS 5.08MM

欧时:
Phoenix Contact PCB 接线端子块 COMBICON MSTBA 系列 11路 5.08mm节距 1排 直角 1757336, 焊接端接, 12A

艾睿:
Reduce the possibility of accidentally shorting pins when using a printed circuit board with this shrouded 1757336 header connector from Phoenix Contact. This HDR connector has 11 contacts that are plated with tin. It has a right angle body orientation. It has a maximum voltage rating of 320 V. It has a header type gender. Its pitch is 5.08 mm. This is a 1-row connector. This device has a maximum current rating of 12 A. It uses the solder termination method. 1757336 is housed in green polybutylene terephthalate. This product is 57.88 mm long, 8.6 mm tall and 12 mm deep.

Allied Electronics:
Conn; TermBlk; PCB; Header; SnglLvl; 90DegAngl; Sldr; 11Pole; 5.08mmPitch; COMBICON

Verical:
Conn Shrouded Header 4 Sides HDR 11 POS 5.08mm Solder RA Side Entry Thru-Hole

MASTER:
PCB headers - nominal current: 12 A - rated voltage III/2: 320 V - nominal cross section: 2.5 mm² - number of positions: 11 - pitch: 5.08 mm - color: green - contact surface: Tin - mounting: Wave soldering - pin layout: Linear pinning - solder pin [P]:

Electro Sonic:
PCB headers - nominal current: 12 A - rated voltage III/2: 320 V - nominal cross section: 2.5 mm² - ...
