AP1086K50L-13

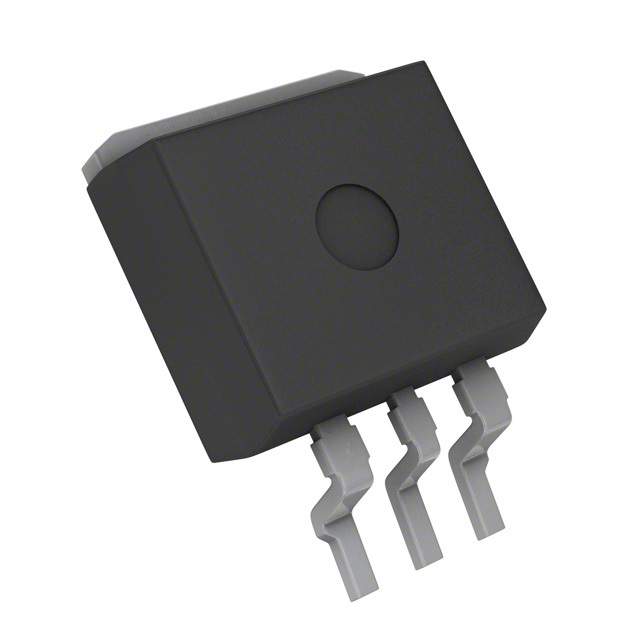

LDO Regulator Pos 5V 1.5A 3Pin2+Tab TO-263 T/R

General Description

AP1086 is a low dropout positive adjustable or fixed-mode regulator with 1.5A output current capability. The product is specifically designed to provide well-regulated supply for low voltage IC applications such as high-speed bus termination and low current 3.3V logic supply. AP1086 is also well suited for other applications such as VGA cards. AP1086 is guaranteed to have lower than 1.4V dropout at full load current making it ideal to provide well-regulated outputs of 1.25V to 5.0V with 4.7 to 12V input supply by different output voltage.

•  3-Terminal Adjustable or Fixed 1.5V, 1.8V, 2.5V,3.3V,5.0V

•  1.4V Maximum Dropout at Full Load Current

•  Fast Transient Response

•  Built-in Thermal Shutdown

•  Output Current Limiting

•  Packages: TO252-3L, TO263-3L, and TO220-3L
