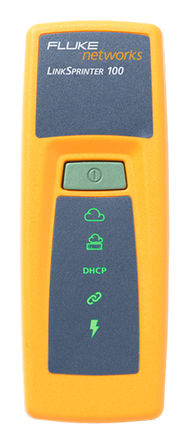

LSPRNTR-100

LinkSprinter™ 100 网络测试仪 LinkSprinter 网络测试仪提供快速、简单且价格合理的网络连接测试和故障诊断，可快速解决问题。 诊断和测试以太网供电 PoE、到交换机的链路、DHCP、网关和互联网连接 通过 CDP/LLDP/EDP 获取您管理的交换机的 VLAN、交换机名称和端口信息 专家级网络故障诊断技术提供给颜色分级的 LED 所有测试结果将发送到 Link-Live 云服务 可将详细的测试结果直接发送到您的电子邮件 连接器：RJ-45 标准 CAN/CSA-C22.2 编号 61010-1-12、EN 61326-1:2006、FCC、IEC 61010-1:2010、UL 61010-1 配线检测器

LinkSprinter provides complete end-to end network connectvity testing, smartphone integration, and automated cloud based reporting all with the touch of a button. LinkSprinter is used by anyone who needs a quick and simple way to validate connectivity and at a price point that fits any IT budget. Users simply connect an Ethernet cable, push a button, and instantly gain insight into destination IP, Gateway, DHCP, Switch, Link and Power over Ethernet PoE connection issues. The LED interface highlights problem areas, while simultaneously sending detailed report information to the user"s smartphone and the cloud reporting dashboard.

.

Diagnose and test Power over Ethernet PoE, Link to the switch, DHCP, Gateway, and Internet connection

.

Get VLAN, switch name, and port information via CDP/LLDP/EDP for your managed switches

.

Expert network troubleshooting techniques delivered to color graded LEDs

.

All test results are sent to the Link-Live Cloud Service

.

Shock and Vibration Random 2g, 5Hz - 500 Hz class 2, 1 m drop

.

Certifications and Compliance Conforms to relevant European Union directives

.

Conforms to relevant Australian standards

.

Conforms to relevant FCC standards
