IR2302S

MOSFET DRVR 600V 0.35A 2Out Hi/Lo Side Half Brdg Inv/Non-Inv 8Pin SOIC

Summary of Features:

.

Floating channel designed for bootstrap operation

.

Fully operational to +600 V

.

Tolerant to negative transient voltage

.

dV/dt immune

.

Gate drive supply range from 5 to 20 V

.

Undervoltage lockout for both channels

.

3.3 V, 5 V and 15 V input logic compatible

.

Cross-conduction prevention logic

.

Matched propagation delay for both channels

.

High side output in phase with IN input

.

Logic and power ground +/- 5 V offset

.

Internal 540ns dead-time

.

Lower di/dt gate driver for better noise immunity

.

Shut down input turns off both channels

.

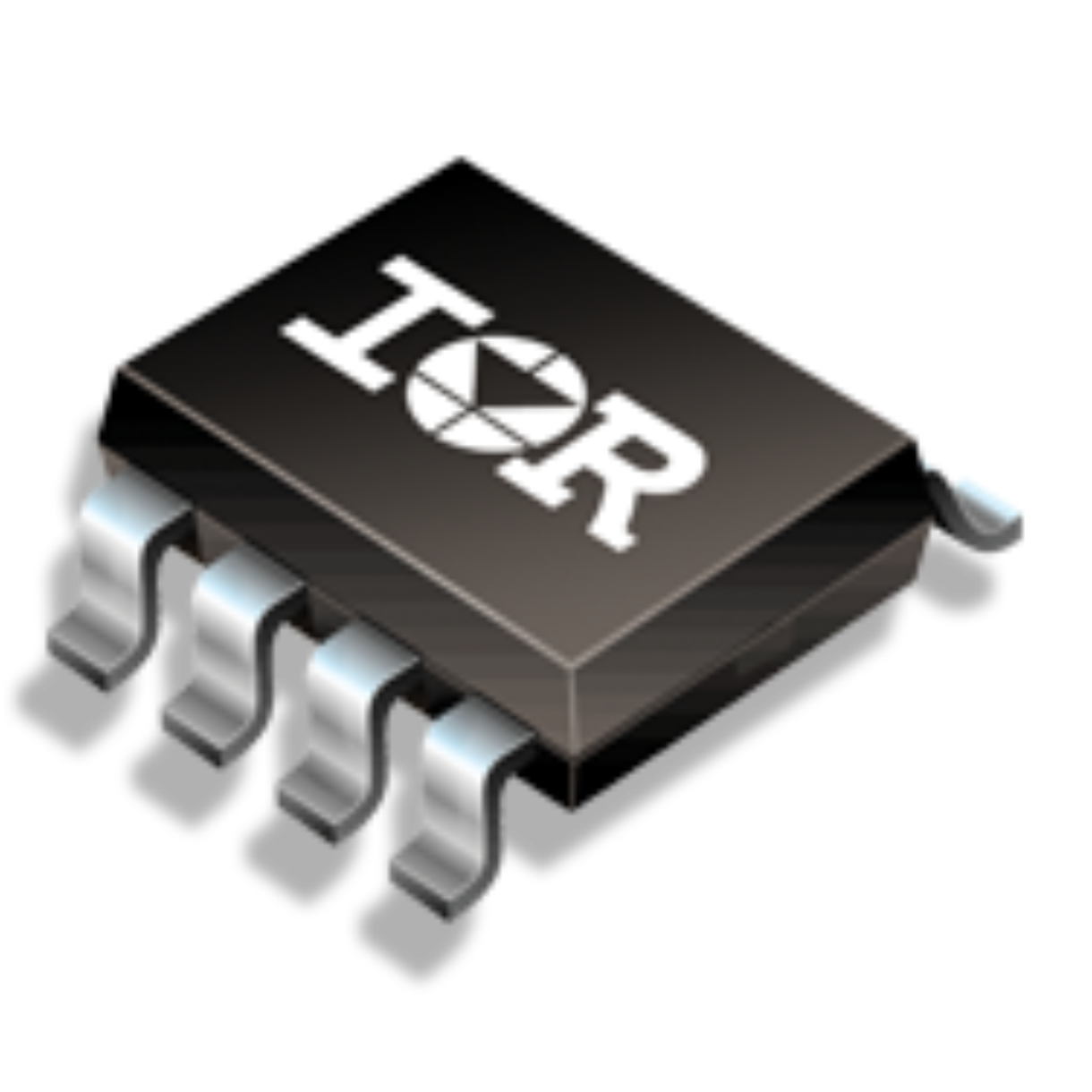

8-Lead SOIC also available LEAD-FREE PbF
