PI3B16226B

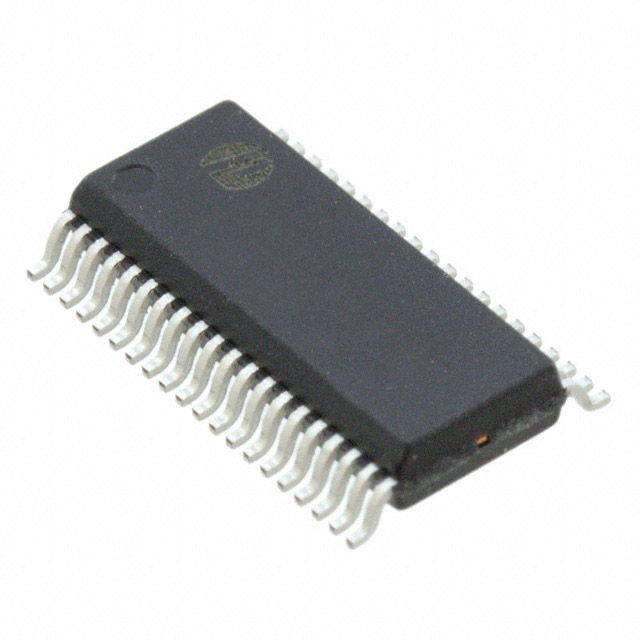

Multiplexer/Demultiplexer Bus Switch 1Element CMOS 24IN 40Pin BQSOP Tube

Description

’s PI3B16226 is a 12-bit to 24-bit mux/demux switch. Industry leading advantages include almost zero propagation delay of 500ps because of 8-ohm channel resistance and low I/O capacitance.

A1 port demultiplexes to either port B1 or B2. The switch is bidirectional.

Features

• RON is 8-ohms typical

• Pulldown on B Ports

• Low Power – 1mW

• Industrial Operation Temperature: –40ºC to 85ºC

• Near-Zero Propagation Delay

• Switching Speed: 4.5ns max.

• Channel on capacitance: 11pF typ.

• VCCOperating Range: 3.3V±10%

• >100 MHz bandwidth

• Packaging Pb-free & Green available:

   -40-pin BQSOP B



Application

  Memory Switching
