TWR-5/3-15/250-D12-C

孤立的，高可靠性 Isolated, High Reliability

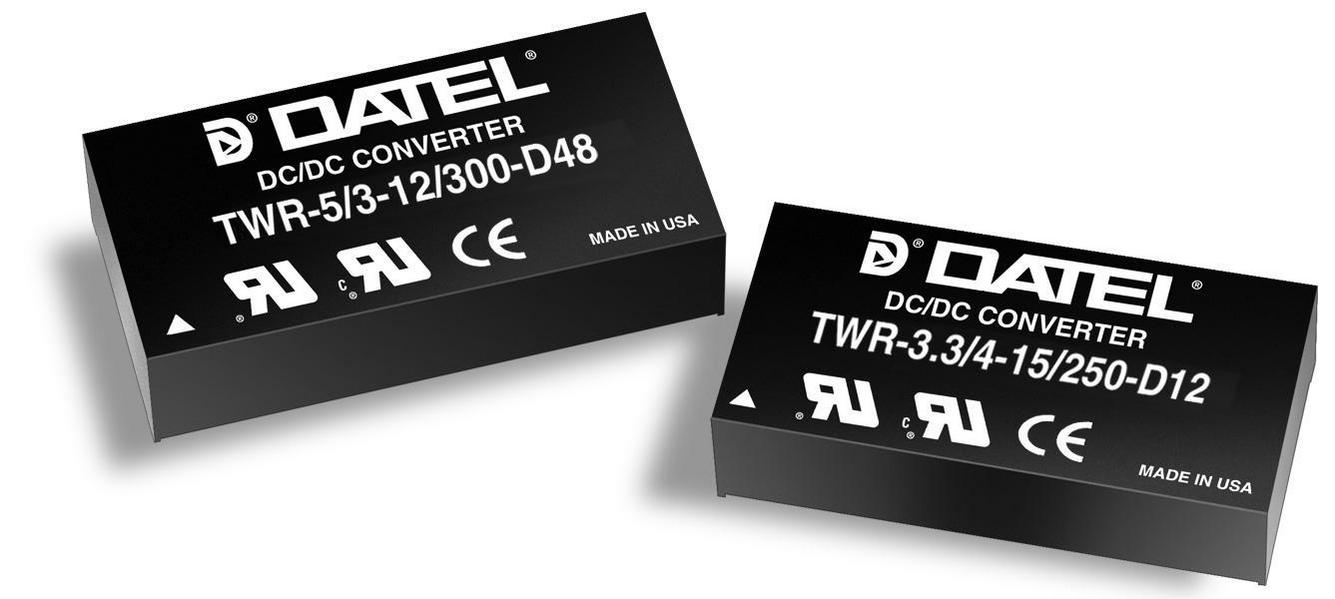

Packaged in 1" x 2" encapsulated modules, the TWR 22W series DC/DC converters offer three outputs arranged as a unipolar low voltage supply and a higher voltage bipolar output pair. The unipolar section supplies either +3.3V at 4A maximum or +5V at 3A maximum. The bipolar outputs are either ±12Vdc at 300mA maximum or ±15Vdc at 250mA and are ideal for op amps, linear or analog circuits. A single TWR converter can power applications with combined analog and digital circuits such as a CPU-controlled voice switch, embedded telephone modem or analytical instruments.

FEATURES

±12V/±15V and 3.3V/5V outputs

10-18V, 18-36V or 36-75V inputs

Up to 22.5 Watts total output power with overtemperature shutdown

To 87% efficiency; 80-100mV Ripple and Noise

1" x 2" x 0.5" encapsulated package

1500Vdc isolation for both outputs

Designed to meet UL 60950-1, CSA-C22.2 No. 60950-1, EN60950-1 safety approvals

Extensive self-protection with short circuit shutdown

Output overvoltage and overcurrent protection

Input under and overvoltage shutdown

Ideal for mixed analog/digital systems
