ADRF6703-EVALZ

ANALOG DEVICES  ADRF6703-EVALZ  评估板, 四路, 调制器, ADRF6703

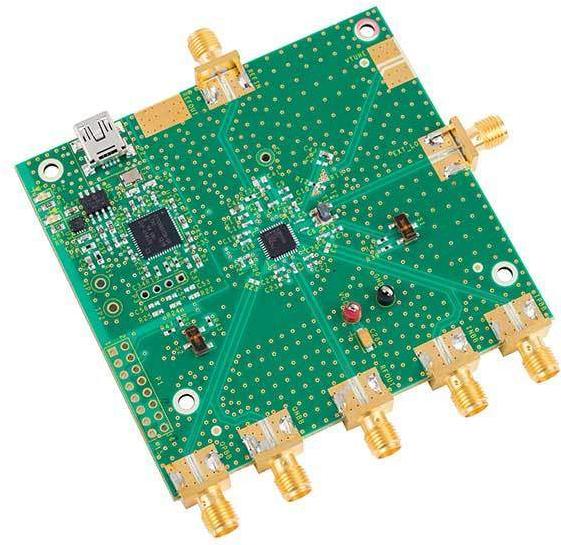

The is an evaluation board for ADRF6703 1550MHz to 2650MHz quadrature modulator device. This board is fully populated, 4-layer, Rogers 4350 based evaluation board. A 5V/300mA power supply is required. The evaluation board can be programmed through the USB port of a PC running windows XP or vista with Microsoft .NET framework 3.5 installed. The ADRF6703 is designed for RF outputs from 1550MHz to 2650MHz. The low phase noise VCO and high performance quadrature modulator make the ADRF6703 suitable for next generation communication systems requiring high signal dynamic range and linearity.

.

IQ modulator with integrated fractional-N PLL

.

RF output frequency range of 1550MHz to 2650MHz

.

Internal LO frequency range of 2100MHz to 2600MHz

.

Output P1dB is 14.2dBm @ 2140MHz

.

Output IP3 of 33.2dBm @ 2140MHz

.

Noise floor is -159.6dBm/Hz @ 2140MHz

.

Baseband bandwidth is 750MHz 3dB

.

SPI serial interface for PLL programming

.

Integrated LDOs and LO buffer
