ADV7189KST

多格式SDTV视频解码器 Multiformat SDTV Video Decoder

GENERAL DESCRIPTION

The ADV7189 integrated video decoder automatically detects and converts a standard analog baseband television signal compatible with worldwide standards NTSC, PAL, and SECAM into 4:2:2 component video data compatible with 20-/16-/10-/8-bit CCIR601/CCIR656.

FEATURES

Multiformat video decoder supports NTSC-M,N, 4.43, PAL-B/D/G/H/I/M/N, SECAM

Integrates three 54 MHz, Noise Shaped Video®, 12-bit ADCs

Clocked from a single 27 MHz crystal

Line-locked clock compatible LLC

Adaptive-Digital-Line-Length-Tracking ADLLT™

5-line adaptive comb filters

Proprietary architecture for locking to weak, noisy, and unstable video sources such as VCRs and tuners

Subcarrier frequency lock and status information output

Integrated AGC with adaptive peak white mode

Macrovision® copy protection detection

CTI chroma transient improvement

DNR digital noise reduction

Multiple programmable analog input formats:

  CVBS composite video

  S-Video Y/C

  YPrPb component VESA, MII, SMPTE, and BetaCam

12 analog video input channels

Automatic NTSC/PAL/SECAM identification

Digital output formats 8-bit/10-bit/16-bit/20-bit: ITU-R BT.656 YCrCb 4:2:2 output + HS, VS, and FIELD

0.5 V to 1.6 V analog signal input range

Differential gain: 0.4% typ

Differential phase: 0.4° typ

Programmable video controls: Peak-white/hue/brightness/saturation/contrast

Integrated on-chip video timing generator

Free run mode generates stable video ouput with no I/P

VBI decode support for Close captioning, WSS, CGMS, EDTV, Gemstar® 1×/2×

Power-down mode

2-wire serial MPU interface I2C® compatible

3.3 V analog, 1.8 V digital core; 3.3 V IO supply

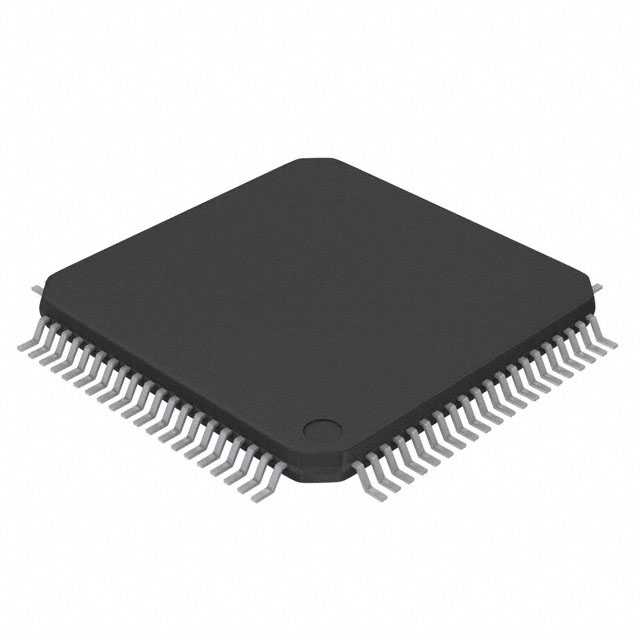

80-lead LQFP Pb-free package

APPLICATIONS

High end DVD recorders

Video projectors

HDD-based PVRs/DVDRs

LCD TVs

Set-top boxes

Professional video products

AVR receiver
