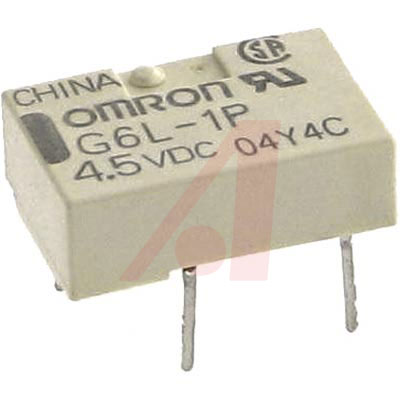

G6L1PDC4.5

Relay; E-Mech; Communication; SPST-NO; Cur-Rtg 0.3/1AAC/ADC; Ctrl-V 4.5DC; PCB Mnt

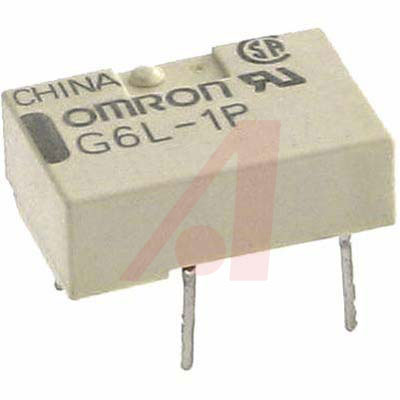

180 mW , 1 A , G6L Series Low Profile 1 A SPST-NO Low Signal Relays

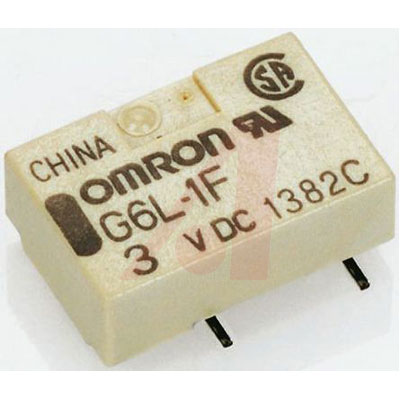

** SPST-NO** . Small in size. Dimensions of 7.0 mm × 10.6 mm × 4.5 mm surface-mount. Meets FCC Part 68 surge withstand requirements. Lead Pb free. Available in PCB though-hole and SMT terminal configuration.

** Features**

* For High-Density Mounting and Slim Finished Packaging, G6L Uses 20% Less Mounting Area and 67% Less Volume in Comparison with the G5V-1 Relay

* Measures Just 7.0 W × 10.6 L × 4.1 H mm for Through-Hole

* High Dielectric Strength: 1,000 VAC Between Coil and Contacts and 750 VAC Between Contacts of the Same Polarity

* Conforms to FCC Part 68 Impulse Withstand Voltage Rating of 1.5 kV for 10 × 160 μS

* Conforms to UL60950 File No. E41515/CSA C22.2 No. 60950 File No. LR31928

* Use of Lead Completely Eliminated
