RE936-09

ROTH ELEKTRONIK  RE936-09  芯片适配器, 玻璃纤维, SOP/HSOP/SOIC-24

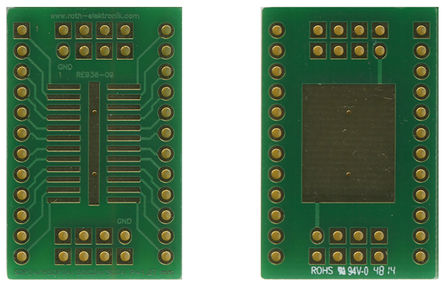

The is a 33.66 x 21.59mm Adaption Circuit Board, made of 1.5mm epoxy fibreglass and 35µm Cu double-sided construction with Ni/Au surface. This 1.27mm circuit board features solder stop mask and comes with shield pad and cooling pad. This plated through hole multi adapter circuit board suitable for SOP24, HSOP24, SOIC24 and SO24 devices.

.

2.54 and 1.27mm Hole spacing

.

2.2 x 2.2mm Two experimenting areas with 2 x 4 square pads
