2092-1103/002-000
WAGO 2092-1103/002-000 线至板接线端子, 3 路, 320 V, 16 A, 24 AWG, 12 AWG, 1.5 mm²

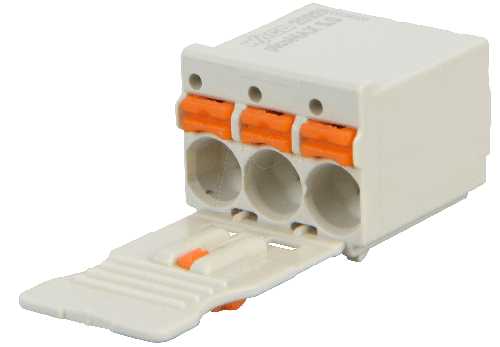

The is a 3-pole 16A light grey wire-to-board Terminal Block with through-hole right-angle block orientation and Push-in CAGE CLAMP® wire connection technology. It has tin-plated electrolytic copper contact with glass fibre-reinforced polyphthalamide insulating material and chrome-nickel-plated steel clamping spring.
- .
- Universal connection of all conductor types
- .
- Simple push-in termination of solid and ferruled conductors
- .
- Easy-to-use design does not require special tools
- .
- Ability to wire while mated or unmated
- .
- Testing parallel to conductor entry-tip contact
- .
- Integrated locking latches prevent accidental disconnection
- .
- Female connector with gripping plate
- .
- UL94V-0 Flammability rating
- .
- -60 to 100°C Operating temperature range
