RN4984AFS

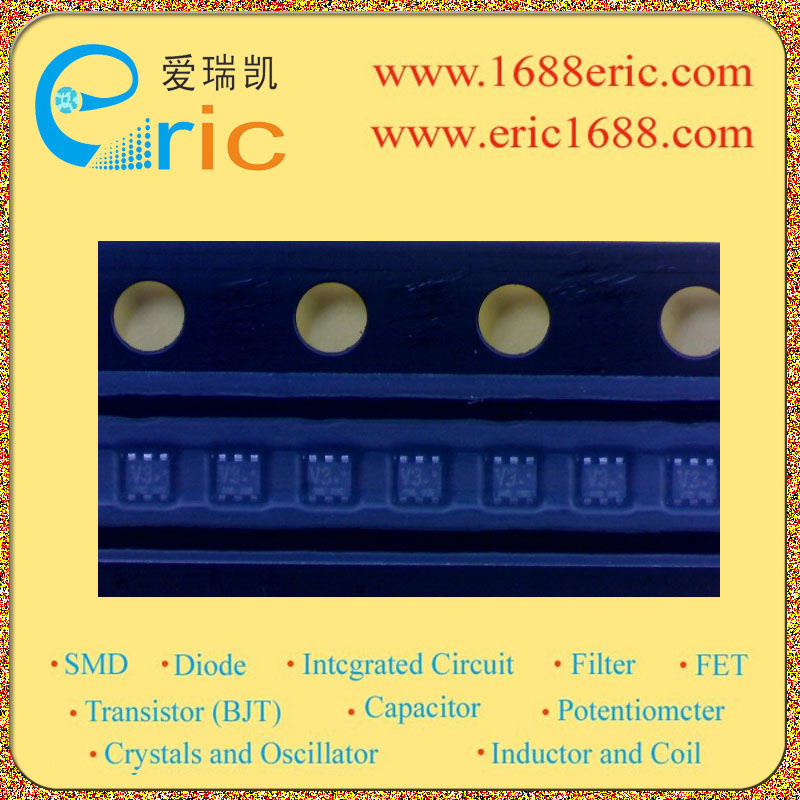

RN4984AFS NPN+PNP复合带阻尼三极管 50V/-50V 80mA/-80mA HEF=80 R1=R2=47KΩ 50mW SOT-963/FS6 标记V3 开关电路 逆变器 接口电路 驱动电路
集电极-基极反向击穿电压VBRCBO Collector-Base VoltageVCBO | 50V/-50V \---|--- 集电极-发射极反向击穿电压VBRCEO Collector-Emitter VoltageVCEO | 50V/-50V 集电极连续输出电流IC Collector CurrentIC | 80mA/-80mA Q1基极输入电阻R1 Input ResistanceR1 | 47KΩ/Ohm Q1基极-发射极输入电阻R2 Base-Emitter ResistanceR2 | 47KΩ/Ohm Q1电阻比R1/R2 Q1 Resistance Ratio | 1 Q2基极输入电阻R1 Input ResistanceR1 | 47KΩ/Ohm Q2基极-发射极输入电阻R2 Base-Emitter ResistanceR2 | 47KΩ/Ohm Q2电阻比R1/R2 Q2 Resistance Ratio | 1 直流电流增益hFE DC Current GainhFE | 80 截止频率fT Transtion FrequencyfT | 耗散功率Pc Power Dissipation | 50mW Description & Applications | Features • TOSHIBA Transistor Silicon NPN- .
- PNP Epitaxial TypePCT Process Bias Resistor Built-in Transistor • Two devices are incorporated into a fine pitch small mold 6-pin package. • Incorporating a bias resistor into a transistor reduces parts count.Reducing the parts count enables the manufacture of ever more compact equipment and lowers assembly cost. Applications • Switching, Inverter Circuit, Interface Circuit and Driver Circuit Applications. 描述与应用 | 特点 • 晶体管的硅NPN*PNP外延型的(PCT进程)内置-在晶体管的(偏置电阻) •的有两台设备成一个罚款的俯仰小型模具(6 - 针)程序包注册成立。 •将偏置电阻晶体管,减少了部件数量。减少部件数量,能够制造更加紧凑的设备和降低装配成本。 应用 •开关,逆变电路,接口电路和驱动器电路应用
