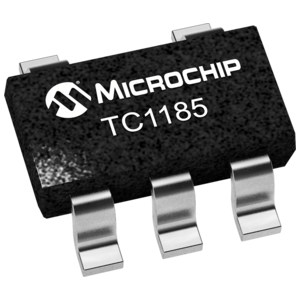

TC1185-1.8VCT713

MICROCHIP  TC1185-1.8VCT713  固定电压稳压器, LDO, 2.7V至6V, 270mV压差, 1.8V输出, 150mA输出, SOT-23-5

TC1185 低压降电压稳压器

得捷:
IC REG LINEAR 1.8V 150MA SOT23-5

立创商城:
TC1185-1.8VCT713

欧时:
### TC1185 低压降电压稳压器### LDO（低压降）线性电压调节器，Microchip

e络盟:
固定电压稳压器, LDO, 2.7V至6V, 270mV压差, 1.8V输出, 150mA输出, SOT-23-5

艾睿:
Maintain a steady voltage level with this LDO TC1185-1.8VCT713 linear regulator from Microchip Technology. It has an overall accuracy of ±0.5 %. Its typical dropout voltage at current is 0.002@100uA|0.065@20mA|0.085@50mA|0.18@100mA|0.27@150mA V. This voltage regulation device&s;s single output can produce a current up to 0.15Min A. This will operate at a minimum voltage of 2.7 V and a maximum voltage of 6 V, making it easy to control the power in your circuit. With a fixed output that has a voltage of 1.8 V, this is power management at its best. A load regulation of 0.5%Typ and line regulation of 0.05%Typ is necessary for providing a constant voltage level at your output. This component will be shipped in tape and reel packaging to allow for effective mounting and safe delivery. Its polarity is positive. This voltage regulation device has a minimum operating temperature of -40 °C and a maximum of 125 °C. The maximum dropout voltage is 0.12@50mA|0.25@100mA|0.4@150mA V.

Allied Electronics:
Regulator, 1.8V 150mA LDO with Shutdown&V; Ref Bypass, SOT-23-5

Chip1Stop:
LDO Regulator Pos 1.8V 0.15A 5-Pin SOT-23 T/R

TME:
Voltage regulator; LDO, fixed; 1.8V; 0.15A; SOT23-5; SMD; -40÷125°C

Verical:
LDO Regulator Pos 1.8V 0.15A Automotive 5-Pin SOT-23 T/R

Newark:
# MICROCHIP  TC1185-1.8VCT713  Fixed LDO Voltage Regulator, 2.7V to 6V, 270mV Dropout, 1.8Vout, 150mAout, SOT-23-5

儒卓力:
**LDOVREG POS 1,8V 0,15A SOT23-5 **

Online Components:
LDO Regulator Pos 1.8V 0.15A Automotive 5-Pin SOT-23 T/R

Win Source:
Linear Voltage Regulator IC Positive Fixed 1 Output 1.8V 150mA SOT-23-5
