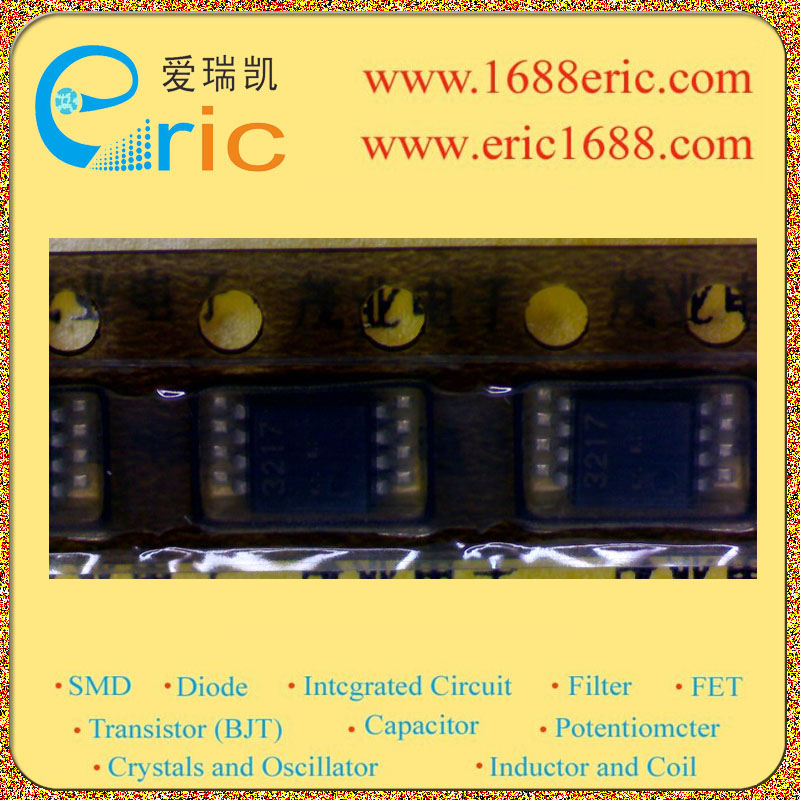

UPC3217GV

UPC3217GV SOT-8

频率Frequency| 100MHz \---|--- P1dB| 增益Gain| 50dB~56dB 噪声系数Noise Figure| 6.5dB~8.0dB RF 类型RF Type| 电源电压Voltage - Supply| 4.5V~5.5V 电源电流Current - Supply| 15mA~34mA 测试频率Test Frequency| Description & Applications| FEATURES • "s GENERAL PURPOSE 5 V AGC AMPLIFIER • ON-CHIP LOW DISTORTION AMPLIFIER:IIP3 = -4 dBm at minimum gain • WIDE AGC DYNAMIC RANGE:GCR = 53 dB TYP • ON-CHIP VIDEO AMPLIFIER:VOUT = 1.25 VP-P at single-ended output • SUPPLY VOLTAGE:VCC = 5 V • PACKAGED IN 8 PIN SSOP SUITABLE FOR SURFACE MOUNTING 描述与应用| 特点 •NEC的通用5 V AGC放大器 •片上低失真放大器：-4 dBm的IIP3=在最小增益 •宽AGC动态范围：GCR= 53 dB（典型值） •片上视频放大器：VOUT= 1.25 VP-P单端输出 •电源电压：Vcc= 5 V •包装适于表面贴装8引脚SSOP
