LL2012-FHL6N8J

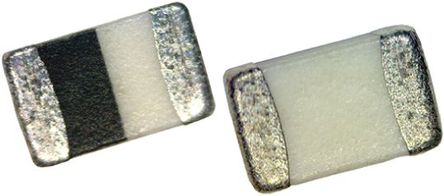

Toko 0805 LL2012-FHL Series Multilayer Ceramic InductorsHighly reliable Multilayer SMD Inductor with a Dual frequency standard per inductance value, plated terminals, integrated ceramic structure and tight physical tolerance dimensions ±0.05mm. Supports high temperature reflow soldering 260°C, 3 times and flow soldering Expanding operating temperature range -55°C ∼ +125°C Extended applicable frequency range ∼ 10GHz ### 表面安装 0805 电感器（扼流圈）

Multilayer Chip Inductors FEATURES . Dual frequency standard for inductance value . Supports high temperature reflow soldering 260°C, 3 times . Surface mounting applicability Supports both reflow and flow soldering . High reliability ceramic integrated structure, and terminals plated . RoHS compliant ELECTRICAL CHARACTERISTICS . Inductance Range 1.5~680nH E-12 Series . Inductance Tolerance S ; 0.3nH 1.5~5.6nH J ;5% 6.8~680nH . Q Typical 22 ~ 65 at 800MHz . Rated Current 50~300mA . Inductance Temperature Coefficient + 250ppm/°C for reference only . Operating Temperature Range -40°C~+ 100°C . Storage Temperature Range -40°C~+ 100°C
