TB6674PG

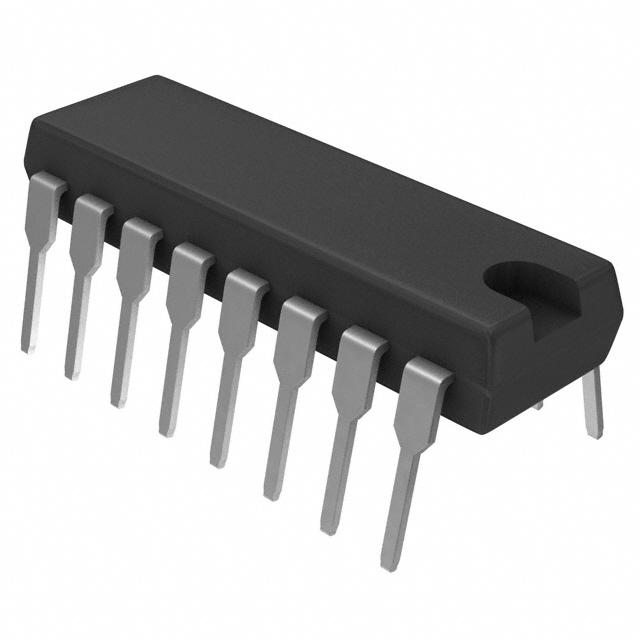

Bipolar Motor Driver Power MOSFET Parallel 16-DIP

, TB6674FG, and TB6674FAG are stepping motor driver ICs with MOS output transistors.

  The ICs can control two-phase stepping motor forward and reverse by bipolar driving. They have a power-saving circuit and a standby circuit.

Features

They are similar substituting products of TA7774PG, TA7774FG, and TA7774FAG. Both products have same packages and same pin assignments.

One-chip two-phase bipolar stepping motor driver including two bridge drivers

Power saving operation is available.

Standby operation is available. Current consumption ≤20 μA typ.

Built-in punch-through current restriction circuit for system ability and noise suppression.

TTL-compatible inputs INA, INB, PS, and Vs2B terminals

ON resistance PS = L : 2.9 ΩTyp.

                   PS = H: 7.9 ΩTyp.

High driving ability.



        : IO START350 mA MAX.  : VS1 ENABLE

        : IO HOLD100 mA MAX.  : VS2 ENABLE



        : IO START100 mA MAX.  : VS1 ENABLE

        : IO HOLD50 mA MAX.  : VS2 ENABLE

Typical PKG  DIP16 pin, HSOP16 pin, SSOP16 pin

GND terminal = HEAT SINK

Process :BiCD0.6 30 V

Over current shutdown circuit ISD.

Thermal shutdown circuit TSD.

Undervoltage lockout circuit UVLO.

Pull-down resistance for input terminal 250 kΩ.
