IRS2001PBF

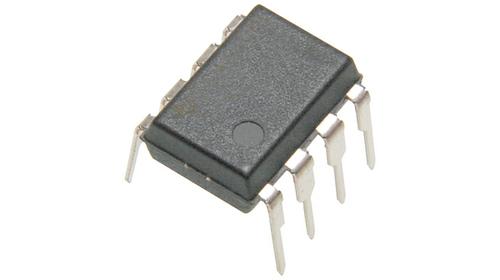

INTERNATIONAL RECTIFIER  IRS2001PBF  芯片, MOSFET驱动器 , 高/低压侧, 200V, 8-DIP

Description

The IRS2001 is a high voltage, high speed power MOSFET and IGBT driver with independent high-side and low-side referenced output channels. Proprietary HVIC and latch immune CMOS technologies enable ruggedized monolithic construction. The logic input is compatible with standard CMOS or LSTTL output, down to 3.3 V logic. The output drivers feature a high pulse current buffer stage designed for minimum driver cross-conduction. The floating channel can be used to drive an N-channel power MOSFET or IGBT in the high side configuration which operates up to 200 V.

Features

• Floating channel designed for bootstrap operation

• Fully operational to +200 V

• Tolerant to negative transient voltage, dV/dt immune

• Gate drive supply range from 10 V to 20 V

• Undervoltage lockout

• 3.3 V, 5 V, and 15 V logic input compatible

• Matched propagation delay for both channels

• Outputs in phase with inputs

• RoHS compliant
