TFML-150-01-S-D

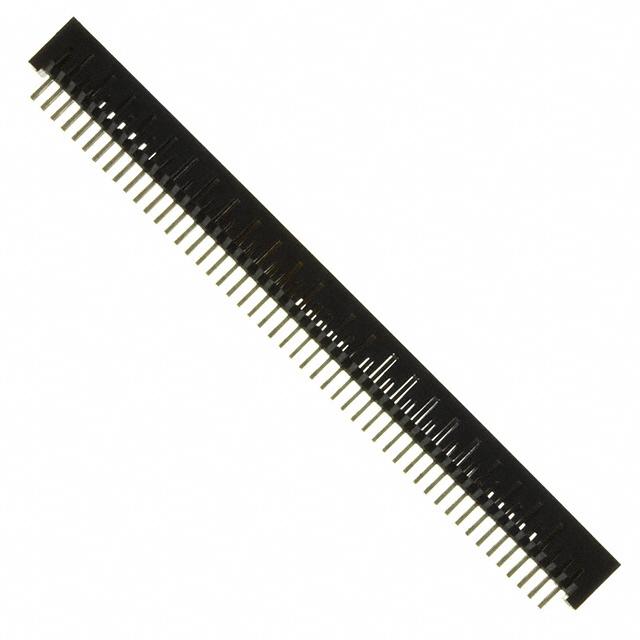

SAMTEC TFML-150-01-S-D Board-To-Board Connector, 1.27mm, 100Contacts, Header, TFML Series, Through Hole, 2Rows

Connector Header Through Hole 100 position 0.050" 1.27mm

得捷:
CONN HEADER VERT 100POS 1.27MM

艾睿:
Make strong and binding connections on your circuit boards by adopting this shrouded TFML-150-01-S-D connector from Samtec. This HDR connector&s;s 100 contacts that are made out of phosphor bronze and plated with gold over nickel. Its pitch is 1.27 mm. It has a maximum voltage rating of 250 VAC. It has a straight body orientation. It has a header type gender. This is a 2-row connector. This device has a maximum current rating of 3.2 A/contact. In order to ensure parts aren&s;t damaged by bulk packaging, this product comes in tube packaging to add a little more protection by storing the loose parts in an outer tube. This connector has an operating temperature of -55 to 125 °C. It uses the solder termination method. TFML-150-01-S-D is housed in black liquid crystal polymer. This product is 66.68 mm long, 5.59 mm tall and 5.72 mm deep.

Chip1Stop:
Conn Shrouded Header HDR 100 POS 1.27mm Solder ST Thru-Hole Tube

Newark:
# SAMTEC  TFML-150-01-S-D  Board-To-Board Connector, 1.27 mm, 100 Contacts, Header, TFML Series, Through Hole, 2 Rows
