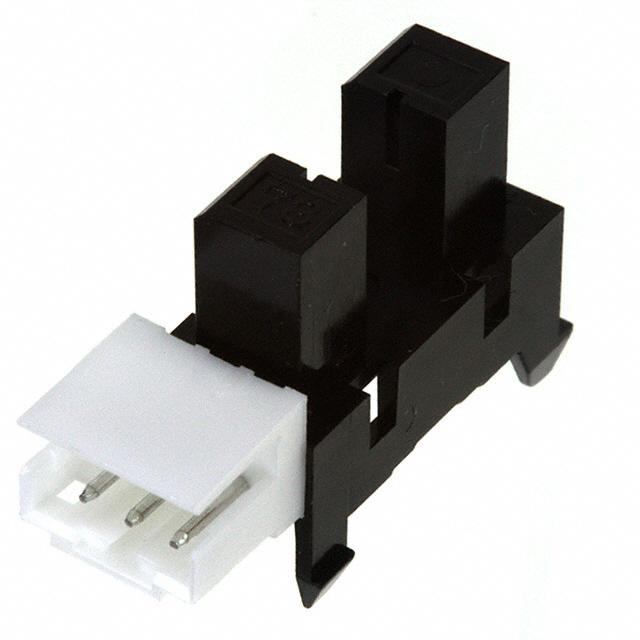

GP1A73AJ000F

Gap : 5mm Slit : 0.5mm OPIC Output, Snap-in type Transmissive Photointerrupter with Connector

■ Description

is a standard, OPIC output, transmis sive photointerrupter with opposing emitter and detector in a case, providing non-contact sensing. For this family of devices, the emitter and detector are inserted in a case, and a 3-pin connector is included to allow remote mount or off-board designs.

■ Features

1\. Transmissive with OPIC output

2\. Highlights :

   • Special position hooks compatible with 3 different plate thicknesses 1.0, 1.2, 1.6mm

   • Hinged snap insertion

3\. Key Parameters :

   • Gap Width : 5mm

   • Slit Width detector side: 0.5mm

   • Package : 17×12.8×8mm without connector and hooks

   • Connector : Tyco Electronics AMP K.K. PN : 292133-3 or SUMIKO TEC CO., LTD. PN : GH4A003P000ZA

   • Output Type : High when the object is present with Pullup Resistor.

4\. Lead free and RoHS directive compliant

■ Applications

1\. General purpose detection of object presence or motion.

2\. Example : PPC, FAX, Printer
