LM385S8-2.5

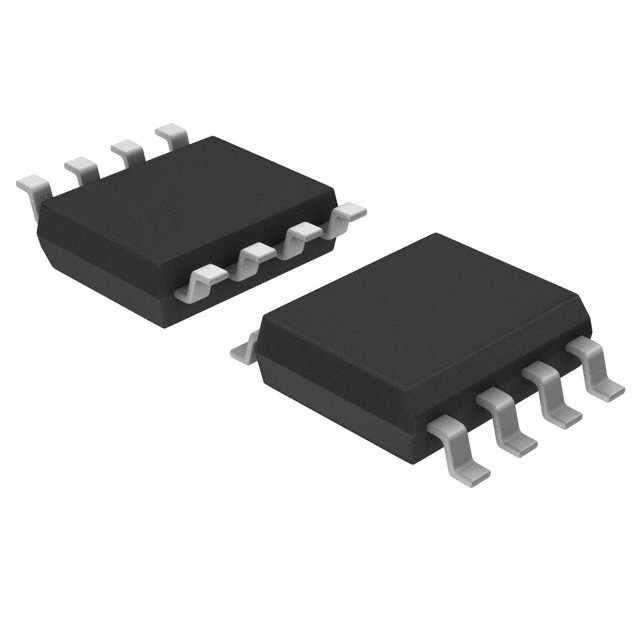

IC VREF SHUNT 2.5V 8SOIC

DESCRIPTIO U

The LM185-2.5 is a two-terminal band gap reference diode that has been designed for applications which require precision performance with micropower operation. The device provides guaranteed operation specifications at currents as low as 20µA. The nominal voltage is 2.5V with both 1% and 2% tolerances available. Some additional features are: maximum dynamic impedance of 1Ω, low noise and excellent stability over time and temperature. The advanced design, processing and testing techniques make Linear’s LM185-2.5 a superior choice over previous designs. A circuit for cold junction compen sation of a thermocouple is shown below.

FEATURES

■ 20µA to 20mA Operating Range

■ Guaranteed 1% Initial Voltage Tolerance

■ Guaranteed 1Ω Dynamic Impedance

■ Very Low Power Consumption

APPLICATIONS

■ Portable Meter References

■ Portable Test Instruments

■ Battery-Operated Systems

■ Panel Meters

■ Current Loop Instrumentation
