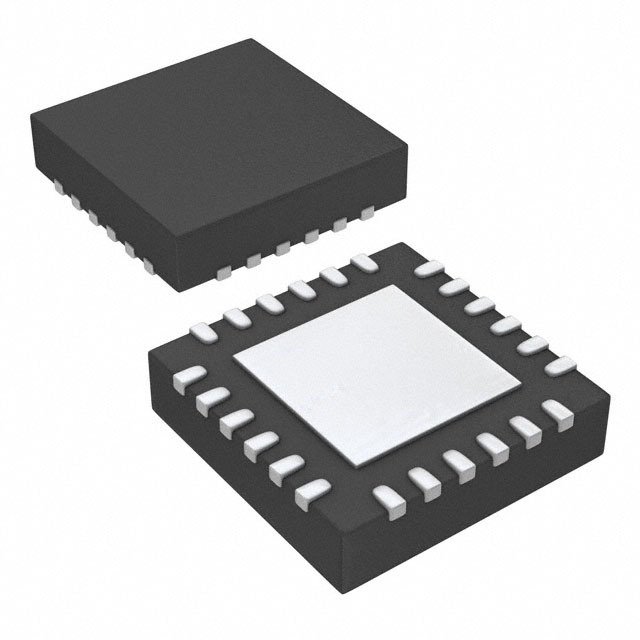

LPC8N04FHI24E

ARM MCU微控制单元, LPC Family LPC80x Series Microcontrollers, ARM 皮质-M0+, 32位, 8 MHz, 32 KB, 8 KB

The LPC8N04 is an IC optimized for an entry level Cortex-M0+ MCU with built-in NFC interface. LPC8N04 supports an effective system solution with a minimal number of external components for NFC related applications. The LPC8N04 MCU contains multiple features, including several power-down modes and a selectable CPU frequency of up to 8 MHz for ultra-low power consumption. The peripheral complement of the LPC8N04 MCU includes 32 kB of flash memory, 8 kB of SRAM, 4 kB of EEPROM, one I2C, one SPI/SSP, and up to 12 general purpose I/O pins.

.

ARM Cortex-M0+ processor running at frequencies of up to 8 MHz

.

ARM Cortex-M0+ built-in Nested Vectored Interrupt Controller NVIC

.

ARM Serial Wire Debug SWD

.

System tick timer

.

IC reset input

.

32 kB on-chip flash programming memory

.

Up to 12 General Purpose Input Output GPIO pins with configurable pull-up/pull-down resistors and repeater mode

.

Analog peripherals

.

NFC/RFID ISO 14443 type A interface

.

I2C bus interface supporting full I2C bus specification

.

Energy harvesting functionality to power the LPC8N04

.

8 MHz internal RC oscillator

.

Unique device serial number for identification
