PAXLR000

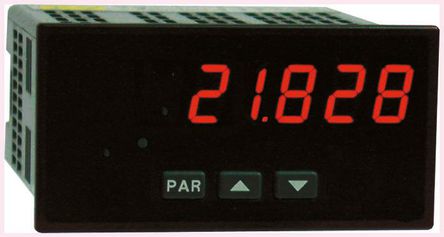

PAX LITE - Tachometer, LED, 14 mm6-digit tachometer with LED display Leading zero suppression provides very good readability Input max. 35 kHz, can be adapted to virtually all sensors High precision through continuous period measurement Decimal point can be freely configured Easy programming using keyboard With sensor power 12 Vdc Input: | NPN, PNP sensors, CMOS, TTL, volt-free contacts, Namur ---|--- Display capacity: | 6-digit, 14 mm high red LED. Scaling: | Freely programmable with 3 front panel keys Measurement period: | Configurable from 0.1 s to 99.9 s Sensor power supply: | 12 Vdc ±10 %, max. 100 mA Power supply: | 115 / 230 Vac, 50 / 60 Hz, ±10 %, 6 VA; 11 → 14 Vdc, 0.1 A max. Housing: | Dark red injection moulded plastic housing Connection: | Secure terminal strips Protection rating: | IP65 front Operating temperature: | 0 °C → +50 °C Dimensions W x H x D: | 96 x 48 x 104 mm ### 认可CE### 随附Device, fixing frame, seal, operating instructions### 面板安装 96 x 48

测速计 115/230VAC 面板安装

得捷:
TACHOMETER LED 6 CHAR 115/230V

欧时:
TACHOMETER,PAXLR

Allied Electronics:
Panel Meter; Rate Ind; Elec; LED; Range 0.01 Hz-25 kHz; Cut-Out 3.62x1.77"; 6 Dig

Newark:
# RED LION  PAXLR000  Rate Meter, Digital Input, Model PAX, 6 Digits, LCD, 10 Vdc to 16 Vdc, 6 VA
