130006-1163

Cordset; Single-End; 5Pole; Female/Pigtail; 16AWG; 1.83m; Mini-Change; 105000A01F060

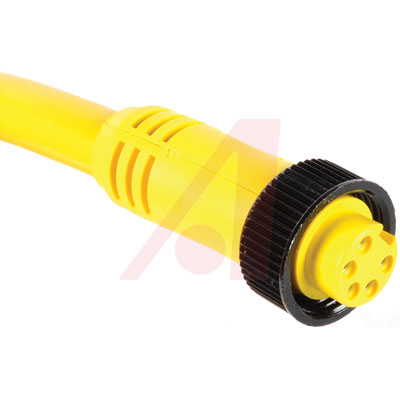

The 1300061163 is a 1-ended A-size yellow Cordset with 5-position circular receptacle to free/strip connection. Comes with a PVC jacket, copper alloy contact, black epoxy coated zinc coupling nut and gold plating mating. The Mini-Change® receptacle features female straight to pigtail leads and single keyway. It also features rugged and sealed connectors in industrial applications. This connector provides the first quick-connect alternative to hard-wiring. To ensure a consistent and low-resistance connection the patented Quad Beam™ female contact is used. An anti-vibration feature prevents the coupler from loosening, even under extreme conditions.

.

Cable is oil, water and UV resistant

.

STOOW wire/cable

.

Sealed to provide IP67 protection

.

-20 to 105°C Operating temperature range
