MAX5451EUD+T

易失性数字电位器, 10 kohm, 双, 上、下, 线性, ± 25%, 2.7 V

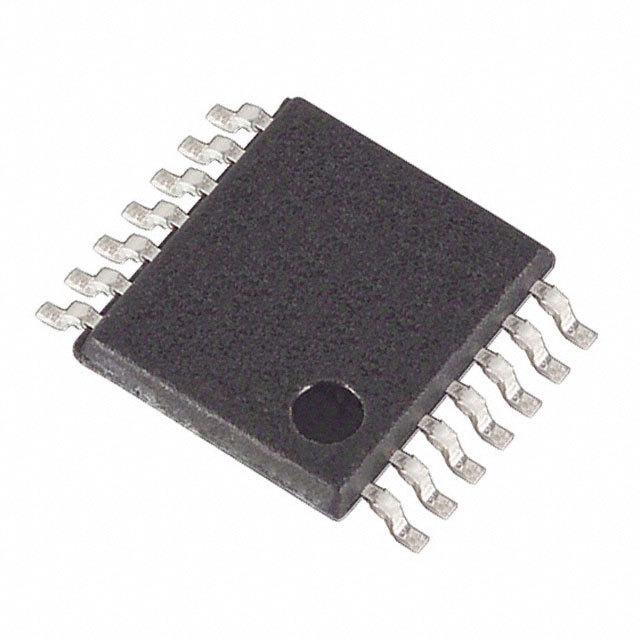

The from Products is a dual, 256-tap, up/down interface digital potentiometer in 14 pin TSSOP package. It has two 3-terminal potentiometers. This device consists of two fixed resistors each with 256 digitally-controlled wiper contacts. The convenient power-on reset POR sets the wiper to midscale position at power-up and the easy to use up/down interface allows glitchless switching between resistor taps. Six inputs control the 14-pin MAX5451 potentiometers. It is ideally used in adjustable gain circuit requiring low-temperature drift. Typical applications include mechanical potentiometer replacement, low-drift programmable-gain amplifier PGA, volume control, LCD screen adjustment, adjustable voltage references, adjustable linear regulators, programmable filters, delays, time constants and impedance matching.

.

Supply voltage range is 2.7V to 5.5V

.

Operating temperature range from -40°C to +85°C

.

Ultra low supply current of 0.1µA

.

Power-on reset sets wiper to midscale position 127

.

Glitchless switching between resistor taps

.

End to end resistance is 10Kohm at ±25% tolerance and temperature coefficient is 35ppm/°C

.

Ratiometric temperature coefficient of 5ppm/°C

.

Adjustable Linear Regulators; Adjustable Voltage Reference; Impedance Matching; LCD Screen Adjustment; Low-Drift Programmable-Gain Amplifier PGA;

.

Mechanical Potentiometer Replacement; Programmable Filters, Delays, Time Constants; Volume Control
