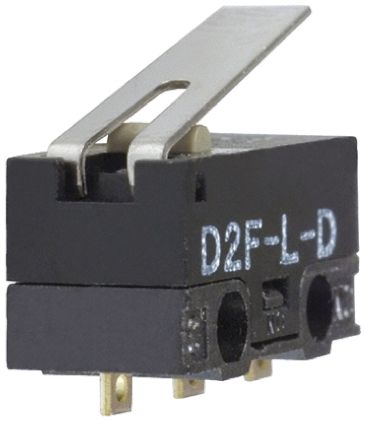

D2F-L-D

RoHs 触点额定值：银触点在 125V 交流时为 3A，金触点在 30V 直流时为 0.1A 单刀双掷触点配置 扣合作用 **认证：UL 和 CSA** ### 微型与超微型开关类型： | 开关单刀双掷 ---|--- 连接： | 铲形电缆靴 6.3 ´ 0.8 mm， 189157：虽然 4.8 ´ 0.5 mm 开关材料： | 银 机械寿命： | 30 ´ 106 能最大限度地运作 触点负载 温度范围： | -55°C* 至 +85°C 尺寸： | （参见附图）

超小型微动

扣合作用超小型微动开关，特别适用于家用电器、音响设备和通信设备。

符合 RoHs

触点额定值：银触点在 125V 交流时为 3A，金触点在 30V 直流时为 0.1A

单刀双掷触点配置

扣合作用

**认证：UL 和 CSA**

欧时:
Omron D2F-L-D 单刀双掷 - 常开/常闭 摆杆 微动开关, 3 A @ 125 V 交流

立创商城:
150gf 3A

贸泽:
Basic / Snap Action Switches 3A Snap Action Swtch 80GF Hinge Basic SLD

艾睿:
The D2FLD snap-action switch from Omron is ideal when it comes to opening or closing your circuit. It has a SPDT configuration. This device has a maximum current rating of 3 A @ 125VAC. This snap action switch has a minimum operating temperature of -25 °C and a maximum of 85 °C. The D2FLD snap action switch has a solder termination style. The maximum AC voltage rating is 125 VAC and the maximum DC voltage rating is 30 VDC. This product is 13.95 mm long, 12.4 mm tall and 5.8 mm deep.

Allied Electronics:
Switch; Subminiature; SPDT; 3 A mp; Hinge Lever; Soldered Terminal; Standard

安富利:
Switch Snap Action N.O./N.C. SPDT Hinge Lever Solder 3A 125VAC 30VDC 0.78N Screw Mount

Chip1Stop:
Switch Snap Action N.O./N.C. SPDT Hinge Lever Solder 3A 125VAC 30VDC 0.78N Screw Mount

TME:
Microswitch SNAP ACTION; with lever; SPDT; 3A/125VAC; 2A/30VDC

Verical:
Switch Snap Action N.O./N.C. SPDT Hinge Lever 3A 125VAC 30VDC 0.78N Screw Mount Solder

Newark:
# OMRON ELECTRONIC COMPONENTS  D2F-L-D  SUBMINIATURE BASIC SWITCH

儒卓力:
**MINI-SCHALTER 3A D2FL **

MASTER:
Switch Snap Action N.O./N.C. SPDT Hinge Lever Solder 3A 125VAC 30VDC 0.78N Screw Mount

Electro Sonic:
Switch Snap Action N.O./N.C. SPDT Hinge Lever Solder 3A 125VAC 30VDC 0.78N Screw Mount
