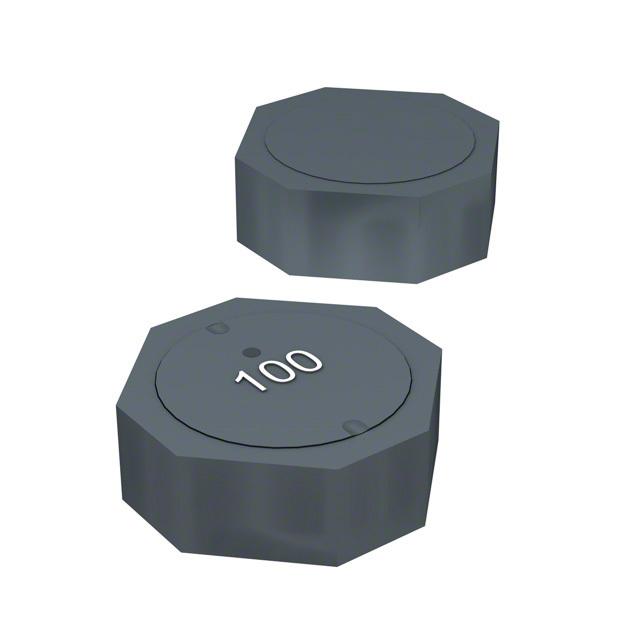

SRU8028-3R3Y

SHIELDED SMD功率电感 Shielded SMD Power Inductors

Inductor Power Shielded Wirewound 3.3uH 30% 100KHz 12Q-Factor Ferrite 3.6A 17.5mOhm DCR 3131 T/R

立创商城:
3.3uH ±30% 3.6A 17.5mΩ

得捷:
FIXED IND 3.3UH 3.6A 17.5MOHM SM

e络盟:
功率电感SMD, 3.3 µH, 3.6 A, 屏蔽, 3.5 A, SRU8028 Series, 8mm x 8mm x 2.8mm

艾睿:
This power SRU8028-3R3Y surface mount inductor from Bourns is available in all standard chip sizes in multilayer thick film and thin film deposition and wire wound styles. This SMD inductor has a minimum operating temperature of -40 °C and a maximum of 125 °C. Tape and reel packaging will encase the product during shipment, ensuring safe delivery and enabling quick mounting of components. This SMD inductor has a maximum DC current of 3.6 A with a maximum resistance of 17.5m Ohm. It has an inductance of 3.3u H. This device is made with wirewound technology. This product is 8.3 mm long, 3.1 mm tall and 8.3 mm deep. Its test frequency is 100K Hz, while its minimum self-resonant frequency is 60MTyp Hz.

安富利:
Ind Power Shielded Wirewound 3.3uH 30% 100KHz 12Q-Factor Ferrite 3.6A T/R

Chip1Stop:
Inductor Power Shielded Wirewound 3.3uH 30% 100KHz 12Q-Factor Ferrite 3.6A 17.5mOhm DCR 3131 T/R

Verical:
Inductor Power Shielded Wirewound 3.3uH 30% 100KHz 12Q-Factor Ferrite 3.6A 0.0175Ohm DCR 3131 T/R

Online Components:
Inductor Power Shielded Wirewound 3.3uH 30% 100KHz 12Q-Factor Ferrite 3.6A 17.5mOhm DCR 3131 T/R

Electro Sonic:
Inductor Power Shielded Wirewound 3.3uH 30% 100KHz 12Q-Factor Ferrite 3.6A 17.5mOhm DCR 3131 T/R

Win Source:
3.3μH Shielded Wirewound Inductor 3.6A 17.5 mOhm Nonstandard
