2716-206

线至板接线端子, 15 mm, 6 路, 16 AWG, 6 AWG, 16 mm², 推入式

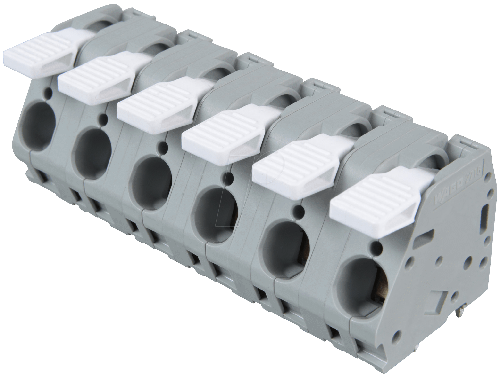

The from Wago is a gray colour, 6 pole CAGE CLAMP PCB terminal block with operating lever. It is a high current PCB terminal strip with lever-actuated CAGE CLAMP. This PCB terminal block is compatible to high current, screw-type PCB terminal blocks. It has CCA, CSA, KEMA and cURus Underwriters Laboratories Inc approvals.

.

1000V rated voltage III/3, 8KV rated impulse voltage III/3 and 76A rated current

.

Pin spacing is 15mm, four solder pins per contact point for high mechanical stability

.

1.5mm² to 16mm² 16AWG to 6AWG solid conductors tool operated termination

.

1.5mm² to 16mm² 16AWG to 6AWG fine stranded tool operated termination

.

Strip length is 12mm to 13mm

.

Conductor entry angle is 30° to PCB

.

Solder pin length/width is 4.5mm / 0.95mm x 1.2mm

.

Insulating material is polyamide 66 PA 66, flammability rating per UL 94 V0

.

Clamping spring material is chrome nickel spring steel CrNi

.

Contact material electrolytic copper Ecu and contact plating is tin
