TPD3S714-Q1EVM

Evaluation Module for USB 2Interface Protection w/Short-to-Battery & Short-to-Ground

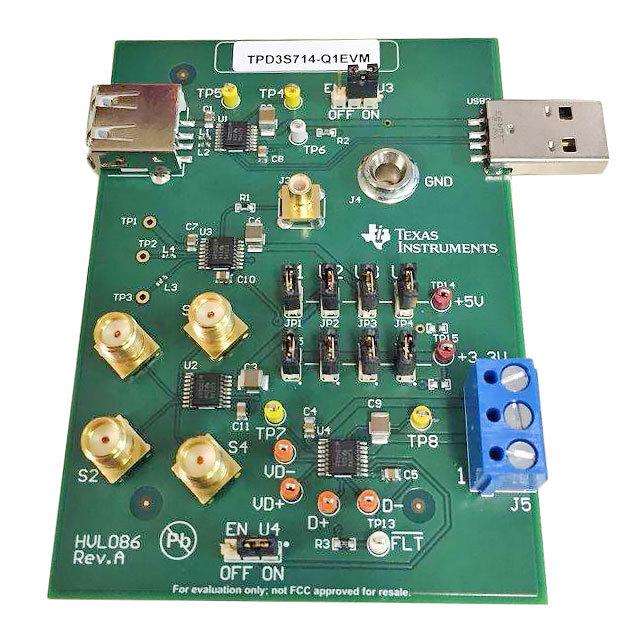

The contains four TPD3S714-Q1s. One TPD3S714-Q1 U1 is configured with two USB2.0 Type A connectors USB1 & USB2 for capturing system level tests. One TPD3S714-Q1 U2 is configured with 4 SMA S1 – S4 connectors to allow 4-port analysis with a vector network analyzer. One TPD3S714-Q1 U3 is configured with test points for striking ESD to the protection pins. U3 is also configured for capturing clamping waveforms using J3 with an oscilloscope during an ESD test. One TPD3S714-Q1 U4 is pinned out for device level tests.
