XRP6274EH-F

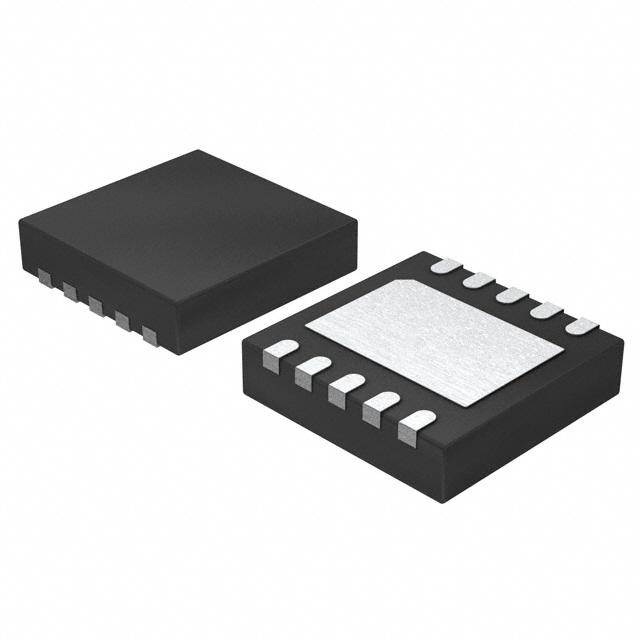

EXAR XRP6274EH-F 电压稳压器, LDO, 可调, 1.045V至2.625V输入, 140mV压差, 600mV, 2A输出, DFN-10
The is an ultra low dropout Voltage Regulator capable of delivering 2A output currents. It is unique in the industry in being able to operate from a single supply rail of 1.045 to 2.625V without the need for a noise generating charge pump. With its ultra low dropout voltage of 140mV at full load guaranteed over temperature, the XRP6274 achieves conversions previously unavailable. The output voltage can be set as low as 0.6V with ±0.5% accuracy making the XRP6274 perfectly suited for powering low voltage devices such as FPGAs, DSPs, ASICs and other SOCs. Built-in current limit, reverse bias and thermal protection ensures safe operation under abnormal operating conditions. An enable function, soft-start and power good flag complete the feature set.
- .
- Power good flag
- .
- Enable and soft-start
- .
- Current limit and thermal protection
- .
- Reverse bias protection
- .
- >=0.6V Adjustable output voltage
- .
- ±0.5% Output voltage accuracy
- .
- 140mV Overtemperature at 2A ultra low dropout voltage
