MAX1501ZETE+

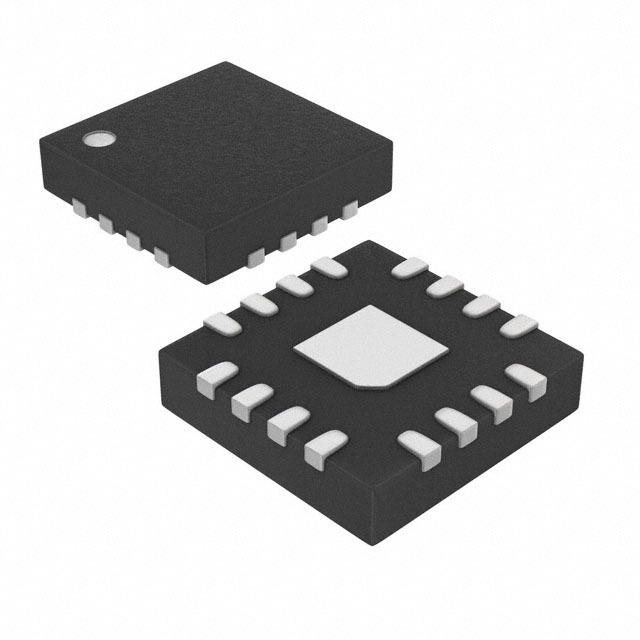

电池充电器, 用于1节锂离子, 镍镉, 镍氢电池, 13V输入, 4.2V / 1.4A充电, TQFN-16

The is a highly integrated, linear battery charger with thermal regulation for portable applications in 16 pin TQFN package. The MAX1501 intelligent, constant-current, constant voltage CCCV, temperature regulated battery charger charges a single lithium-ion Li+ cell or three-cell NiMH/NiCd batteries. The device integrates the current sense resistor, PMOS pass element and thermal regulation circuitry, while eliminating the reverse blocking Schottky diode. For single-cell Li+ batteries, the MAX1501 functions as a stand-alone charger to control the charging sequence from the prequalification state through fast charge, top off and charge termination. With 3-cell NiMH/NiCd batteries, the MAX1501 requires collaboration with a microcontroller to determine the best charging algorithm. Thermal-regulation circuitry limits the die temperature when fast charging or while exposed to high ambient temperatures, allowing maximum charging current without damaging the charger.

.

Supply voltage range is 4.5V to 13V

.

Operating temperature range from -40°C to 85°C

.

No FET, reverse-blocking diode, or current sense resistor required

.

Programmable fast-charge current is 1.4A max

.

Input overvoltage OVLO protection above 6.5V

.

Programmable top-off current threshold is 10%, 20%, or 30% of fast-charge current

.

Charge-current monitor for fuel gauging

.

Programmable safety timer 3, 4.5, or 6 hours

.

Input power detection output and charge enable input

.

Automatic recharge
