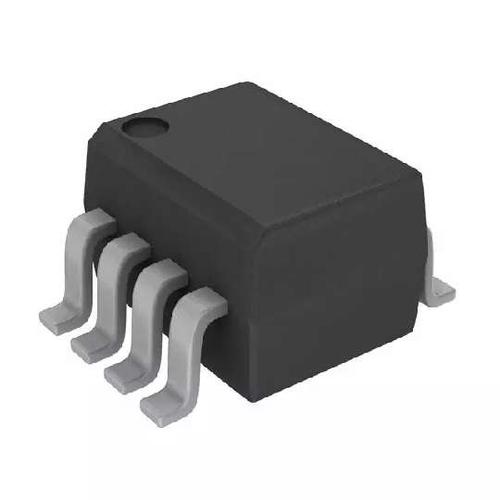

ACPL-H342-560E

Optocoupler Drive Push-Pull 1CH 30V 1500V 8Pin SO T/R

Description

The ACPL-H342/ACPL-K342 contains an AlGaAs , which is optically coupled to an integrated circuit with a power output stage. This optocoupler is ideally suited for driving power IGBTs and MOSFETs used in motor control inverter applications.

Features

•  2.5 A Maximum Peak Output Current

•  2.0A Minimum Peak Output Current

•  Built-in Active Miller Clamp

•  Rail-to-Rail Output Voltage

•  Fast Propagation Delay to minimize Dead Time

•  tPHL< tPLHto provide “Anti-Cross” Conduction

•  LED input threshold current hysteresis

•  ICC= 2.5 mA Maximum Supply Current to allow boot strap power supply

•  Under Voltage Lock-Out Protection UVLO with Hysteresis

•  40 kV/µs Minimum Common Mode Rejection CMR at

VCM= 1500 V

•  Wide Operating VCCRange: 15 to 30 Volts

•  Industrial Temperature Range: -40°C to 105°C

•  Safety Approval:

–  UL Recognized 3750/5000 VRMSfor 1min.

–  CSA

–  IEC/EN/DIN EN 60747-5-5 VIORM= 891/1140 Vpeak
