DSOX3SGM

KEYSIGHT TECHNOLOGIES  DSOX3SGM  选件, 多段式存储器, 3000 X系列

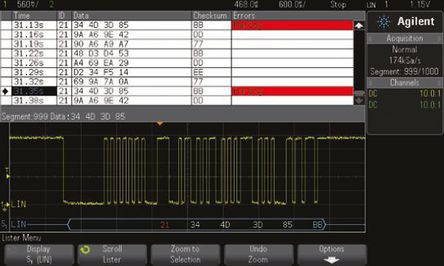

Keysight"s segmented memory option for the InfiniiVision 3000 X-Series oscilloscopes can optimize your scope"s acquisition memory, allowing you to capture more selective signal details with less memory. You can then easily view all captured waveforms by scrolling through each individual waveform segment. Keysight"s InfiniiVision Series oscilloscopes are the only scopes in the industry that provide segmented memory acquisitions simultaneously on all analog channels up to four analog channels and logic channels up to 16 digital channels, as well as the only scopes that provide hardware-based serial decoding on packetized serial data for each captured waveform segment. This measurement/test option works with all InfiniiVision 3000 X-Series 2-channel and 4-channel DSO and MSOs.

.

*Key Features & Specifications **

* Optimized acquisition memory

* Capture up to 1000 successive waveform segments

* Fast re-arm time at under 1 μs

* Down to 10 ps time-tag resolution

* Segments include all analog and digital channels of acquisition

* Segments include serial bus decoding
