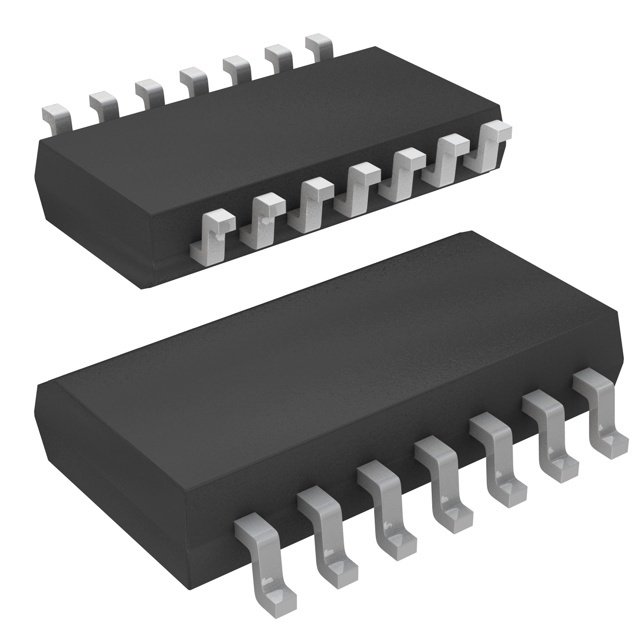

SN74LV02ANSR

四路2输入正或非门 QUADRUPLE 2-INPUT POSITIVE-NOR GATES

description

The ’LV02A devices are quadruple 2-input positive-NOR gates designed for 2-V to 5.5-V VCC operation.

2-V to 5.5-V VCC Operation

Max tpd of 6.5ns at 5V

Typical VOLPOutput Ground Bounce

   <0.8 V at VCC = 3.3 V, TA= 25°C

Typical VOHVOutput VOH Undershoot

   >2.3 V at VCC = 3.3 V, TA= 25°C

Support Mixed-Mode Voltage Operation on All Ports

Ioff Supports Partial-Power-Down Mode Operation

得捷:
IC GATE NOR 4CH 2-INP 14SOP

立创商城:
SN74LV02ANSR

德州仪器TI:
4-ch, 2-input, 2-V to 5.5-V NOR gates

贸泽:
逻辑门 Quadruple 2-Inputs Positive-NOR Gate

艾睿:
Simplify your circuit through the use of Texas Instruments&s; SN74LV02ANSR logic gates, great for implementing basic logical functions. This gate has a minimum operating temperature of -40 °C and a maximum of 125 °C. In order to guarantee safe delivery and allow for quick mounting of this component after delivery, it will be enclosed in tape and reel packaging during shipment. This device has a typical operating supply voltage of 2.5|3.3|5 V. Its minimum operating supply voltage of 2 V, while its maximum is 5.5 V.
