AD5680BCPZ-2RL7

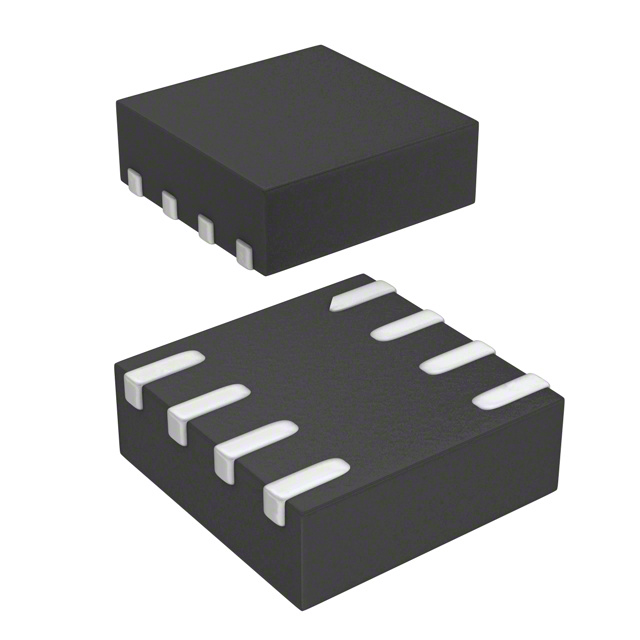

DAC 1CH Resistor-String 18Bit 8Pin LFCSP T/R
Product Details
The AD5680, a member of the _nano_DAC family, is a single, 18-bit buffered voltage-out digital-to-analog converter DAC that operates from a single 4.5 V to 5.5 V supply and is 18-bit monotonic.
The AD5680 requires an external reference voltage to set the output range of the DAC. The part incorporates a power-on reset circuit that ensures the DAC output powers up to 0 V AD5680-1 or to midscale AD5680-2 and remains there until a valid write takes place.
The low power consumption of this part in normal operation makes it ideally suited to portable battery-operated equipment. The power consumption is 1.6 mW at 5 V.
The AD5680 on-chip precision output amplifier allows rail-to-rail output swing to be achieved. For remote sensing applications, the output amplifier’s inverting input is available to the user.
The AD5680 uses a versatile 3-wire serial interface that operates at clock rates up to 30 MHz, and is compatible with standard SPI®, QSPI™, MICROWIRE™, and DSP interface standards.
Applications
- .
- Closed-loop process control
- .
- Low bandwidth data acquisition systems
- .
- Portable battery-powered instruments
- .
- Gain and offset adjustment
- .
- Precision setpoint control
### Features and Benefits
- .
- Single 18-bit _nano_DAC
- .
- 18-bit monotonic
- .
- 12-bit accuracy guaranteed
- .
- Tiny 8-lead SOT-23 package
- .
- Power-on reset to zero scale/midscale
- .
- 4.5 V to 5.5 V power supply
- .
- Serial interface
- .
- Rail-to-rail operation
- .
- SYNC interrupt facility
- .
- Temperature range: −40°C to +105°C
